INCH-POUND
MIL-DTL-3943/12G
29 May 2007
SUPERSEDING
MIL-DTL-3943/12F
11 May 1999
DETAIL SPECIFICATION SHEET

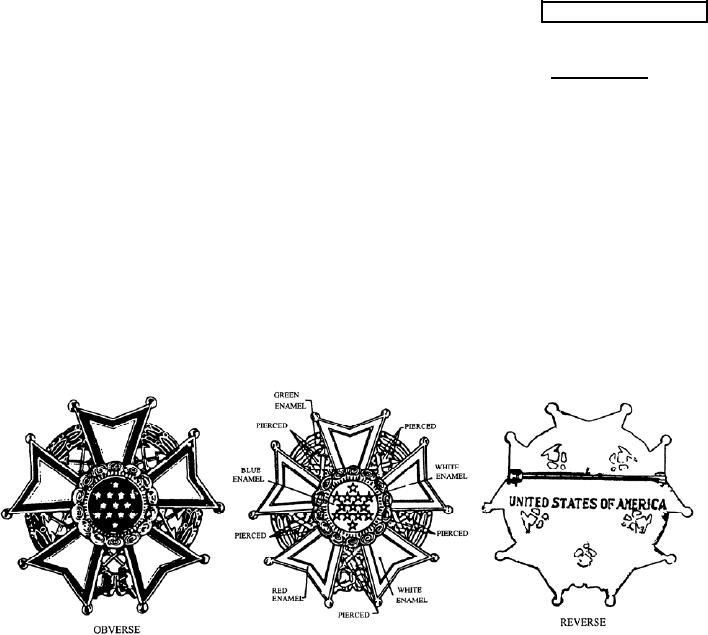

DECORATION, LEGION OF MERIT, CHIEF COMMANDER
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3943.
MATERIAL: Gilding Metal
FINISH: Hard Enameled, Gold Plated, Matte Finish, Polished Highlights and shall match
The Institute of Heraldry (TIOH) Metal Finish Chip Number 8.
DIMENSIONS:
DIAMETER:
BASE: 2-15/16 inches (REF)
CENTER DEVICE: 1-1/8 inches (REF)
THICKNESS (at thickest point):
BASE: 0.185 inch ± 0.005 inch
DEVICE: 0.140 inch ± 0.005 inch
OVERALL: 0.325 inch ± 0.010 inch
AMSC N/A
1 of 3
FSC 8455
