INCH-POUND
MIL-DTL-3628/82D
30 June 2014
SUPERSEDING
MIL-DTL-3628/82C
20 March 2003
DETAIL SPECIFICATION SHEET

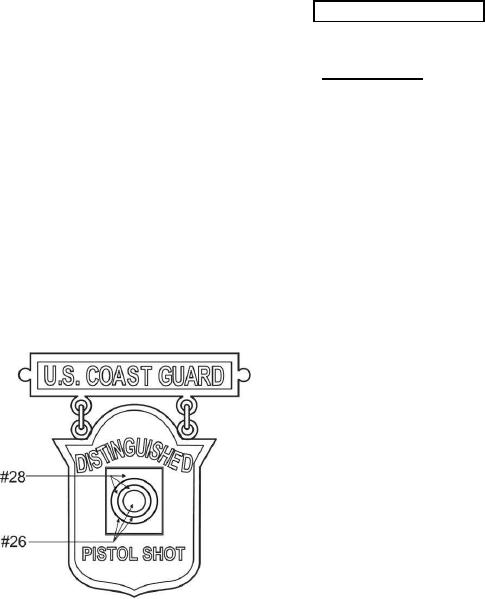

BADGE, QUALIFICATION, DISTINGUISHED PISTOL SHOT, U. S. COAST GUARD
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
MATERIAL:
PENDANT: Gilding Metal 95/5 (UNS Alloy No. C-210)
SUSPENSION BAR: Red Brass 85/15 (UNS Alloy No. C-230) or Gilding Metal 95/5
(UNS Alloy No.C210)
FINISH:
PENDANT:
OBVERSE: Epoxy resin (Stoning epoxy), 24K Gold Plated, Matte Finish, Polished
Highlights and shall match The Institute of Heraldry (TIOH) Metal Finish Chip Number 8.
REVERSE: 24K Gold Plated, Matte Finish, Polished Highlights and shall match TIOH
Metal Finish Chip Number 8
SUSPENSION BAR:
OBVERSE: Epoxy resin (Stoning epoxy), 24K Gold Plated, Matte Finish, Polished
Highlights and shall match TIOH Metal Finish Chip Number 8.
REVERSE: 24K Gold Plated, Matte Finish and shall match TIOH Metal Finish Chip
Number 7.
AMSC N/A
Page 1 of 3
FSC 8455
