INCH-POUND
MIL-DTL-3628/69D
14 February 2013
SUPERSEDING
MIL-DTL-3628/69C
15 November 1996
DETAIL SPECIFICATION SHEET

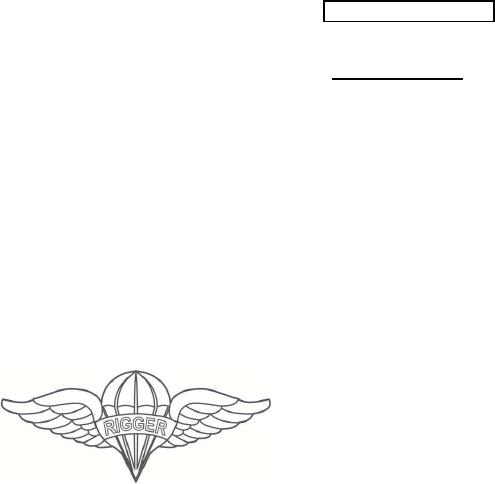

BADGE, QUALIFICATION, COMBAT AND SPECIAL SKILL, RIGGER U.S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
DASH NO.
-1: Regular Size
-2: Miniature Size
-3: Regular Size, Subdue
MATERIAL: (-1, -2, and -3) Red Brass 85/15 (UNS Alloy No. C-230) or Nickel Silver 65/15
(UNS Alloy C-752)
FINISH:
-1, -2: Nickel Plated (C-230 only) , Silver Plated, Oxidized, Buffed Relieved, Matte Finish
and shall match The Institute of Heraldry (TIOH) Metal Finish Chip Number 14.
-3: Dull Flat Black Enamel Finish and shall Match TIOH Metal Finish Chip Number 21.
DIMENSIONS:
HEIGHT (Overall):
-1, -3: 11/16 inch (REF)
-2: 3/8 inch (REF)
WIDTH (Overall):
-1, -3: 1-3/4 Inches (REF)
-2: 1 Inch (REF)
AMSC N/A
Page 1 of 2
FSC 8455
