INCH-POUND
MIL-DTL-3628/66E
23 June 2014
SUPERSEDING
MIL-DTL-3628/66D
15 November 1996
DETAIL SPECIFICATION SHEET

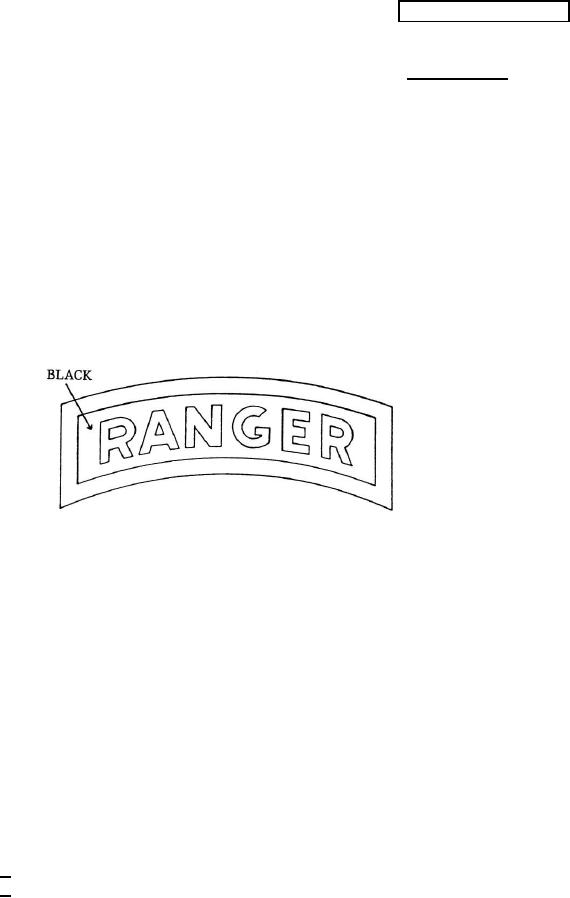

BADGE, QUALIFICATION, RANGER TAB, U.S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
DASH NO.
-1: Regular Size
-2: Miniature Size
MATERIAL (-1 and -2): Gilding Metal 95/5 (UNS Alloy No.C-210)
FINISH: (-1 and -2) Epoxy resin (Stoning epoxy), 24K Gold Plated, Mirror-like Polished and
shall match The Institute of Heraldry (TIOH) Metal Finish Chip Number 6.
DIMENSIONS:
HEIGHT (Overall):
-1: 21/64 inch (REF)
-2: 7/32 inch (REF)
WIDTH (Overall):
-1: 1-5/32 inches (REF)
-2: 13/16 inch (REF)
THICKNESS (On eagle breast):
-1: 0.080 inch + 0.010 inch
-2: 0.075 inch + 0.010 inch
AMSC N/A
Page 1 of 2
FSC 8455
