INCH-POUND
MIL-DTL-3628/63G
15 November 2009
SUPERSEDING
MIL-DTL-3628/63F
15 November 1996
DETAIL SPECIFICATION SHEET

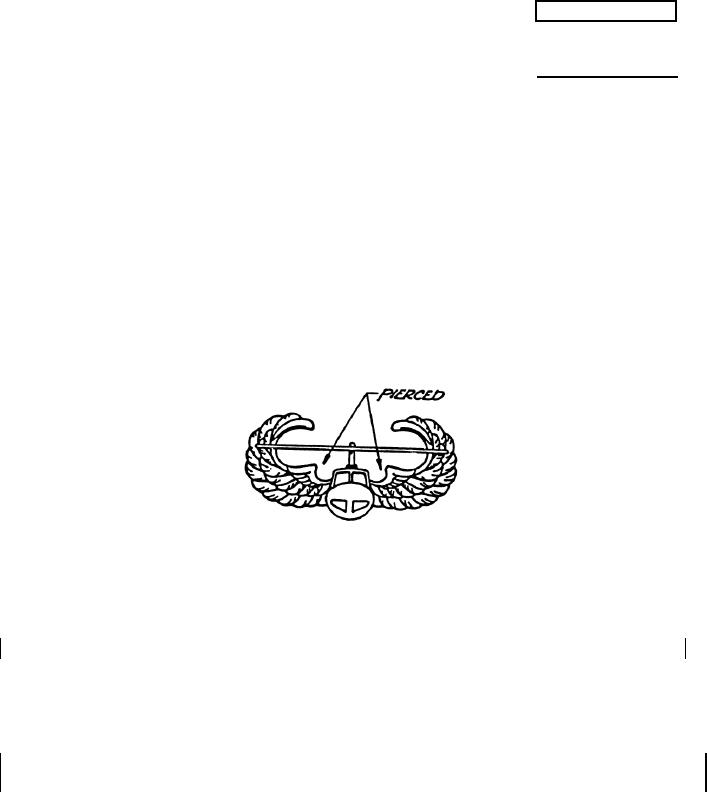

BADGE, QUALIFICATION, AIR ASSAULT, ARMY
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-DTL-3628.
DASH NO.
-1: Regular Size
-2: Dress Miniature Size
-3: Regular Size, Subdued
MATERIAL: Red Brass or Nickel Silver or Zinc Aluminum
FINISH:
-1, -2: Nickel Plated (Red Brass only), Silver Plated, Oxidized, Relieved, Matte Finish
and shall match The Institute of Heraldry (TIOH) Metal Finish Chip Number 14.
Zinc Aluminum: Copper Plated, Nickel Plated, Silver Plated, Oxidized, Relieved, Matte Finish
and shall match TIOH Metal Finish Chip Number 14.
-3: Dull Flat Black Enamel Finish.
DIMENSIONS:
HEIGHT (overall):
-1, -3: 3/4 inch (REF)
-2: 7/16 inches (REF)
AMSC N/A
Page 1 of 2
FSC 8455
