INCH-POUND
MIL-DTL-3628/50F
28 April 2014
SUPERSEDING
MIL-DTL-3628/50E
15 November 1996
DETAIL SPECIFICATION SHEET

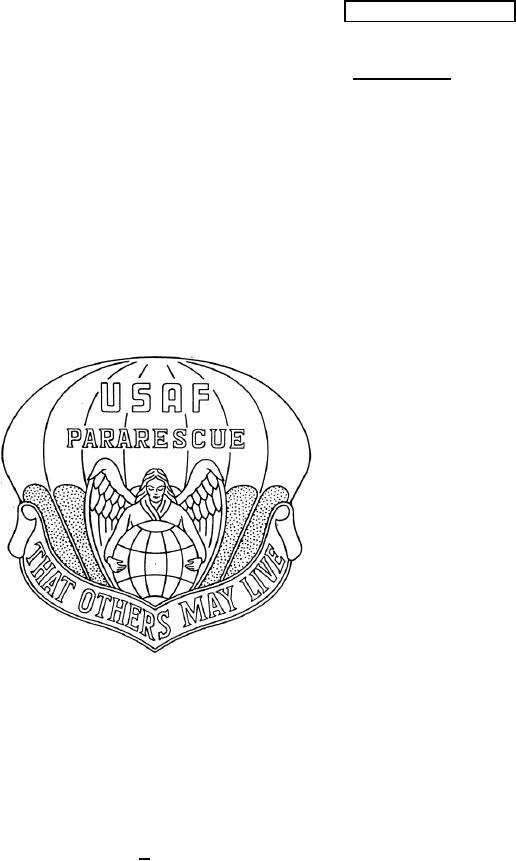

BADGE, QUALIFICATION, PARARESCUE, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230) or Nickel Silver 65/35
(UNS Alloy No C-752)
FINISH: Nickel Plated, Mirror like Polished and shall match The Institute of Heraldry
Metal Finish Chip Number 16.
DIMENSIONS:
HEIGHT: 1-1/2 inches (REF)
WIDTH: 1-17/32 inches (REF)
THICKNESS: (At thickest point): 0.105 inch + 0.010 inch
AMSC N/A
Page 1 of 2
FSC 8455
