INCH-POUND
MIL-DTL-3628/264A
16 March 2015
SUPERSEDING
MIL-DTL-3628/264
13 January 2015
DETAIL SPECIFICATION SHEET
BADGE, IDENTIFICATION, SOLDIER FOR LIFE, U.S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-3628.

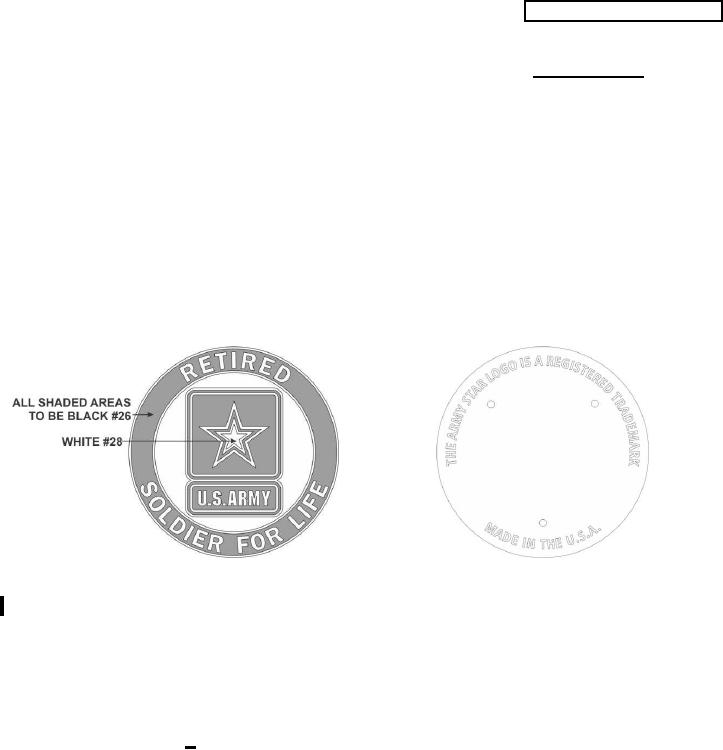

OBVERSE
REVERSE
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH: Epoxy resin, 24K Gold Plated, Matte Finish, Polished Highlights and shall match the
Institute of Heraldry (TIOH) Metal Finish Chip Number 8.
DIMENSIONS:
DIAMETER: 2 inches (REF)
THICKNESS: 0.082 + .010 inches
ATTACHING DEVICE:
1. The attaching device shall be a 5/16 inch prong and flat ball type clutch.
2. A three prong configuration will be used. Two prongs will be place at the top of the badge
1-1/4 inches apart and one prong 1-1/2 inches ± 1/4 inch below them on the vertical centerline.
All prongs will be fused or soldered to the badge.
AMSC N/A
Page 1 of 2
FSC 8455
