INCH-POUND
MIL-DTL-3628/105D
19 March 2010
SUPERSEDING
MIL-DTL-3628/105C
11 May 2005
DETAIL SPECIFICATION SHEET
BADGE, OCCUPATIONAL, CIVIL ENGINEER, AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.

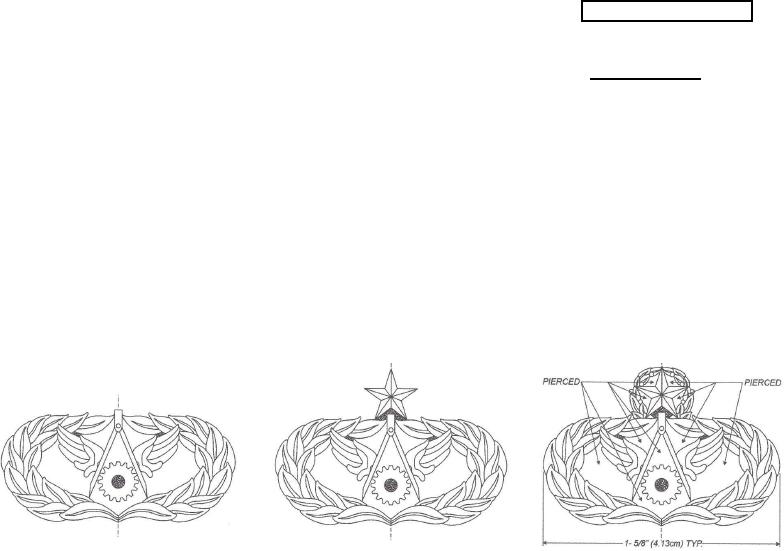

BASIC
SENIOR
MASTER
DASH NO.
-1: Basic, Regular Size
-4: Basic, Mid Size
-2: Senior, Regular Size
-5: Senior, Mid Size
-3: Master, Regular Size
-6: Master, Mid Size
MATERIAL: Not less than 85/15 Rich-Low Brass or Nickel Silver
FINISH: Nickel Plated (Brass only), Mirror-like Polished and shall match
The Institute of Heraldry (TIOH) Metal Finish Chip Number 16.
DIMENSIONS:
HEIGHT (overall):
-1: 3/4 inch (REF)
-2: 1-1/16 inches (REF)
-3: 1-1/16 inches (REF)
-4: 9/16 inch (REF)
-5: 57/64 inch (REF)
-6: 57/64 inch (REF)
AMSC N/A
Page 1 of 2
FSC 8455
