INCH-POUND
MIL-DTL-3476/26E
5 May 2014
SUPERSEDING
MIL-DTL-3476/26D
20 August 1997
DETAIL SPECIFICATION SHEET
BRASSARD, SECURITY POLICE, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-3476.
MATERIAL:
BASE: 100% Lightweight Acrylic, Plain Weave, Weighing at least 8 ounces
LINING: 50% Polyester//50% Cotton Blend, Plain Weave, Weighing at least 8 ounces
LOOP: Cotton Tape
COLORS:
BASE: Blue (Cable HX 67123)
LINING: Black (Cable HAN 67138)
LETTERING: Steel (Cable HCY 67199)
THREAD: Blue (Cable HY 67123)
CONSTRUCTION DETAILS:

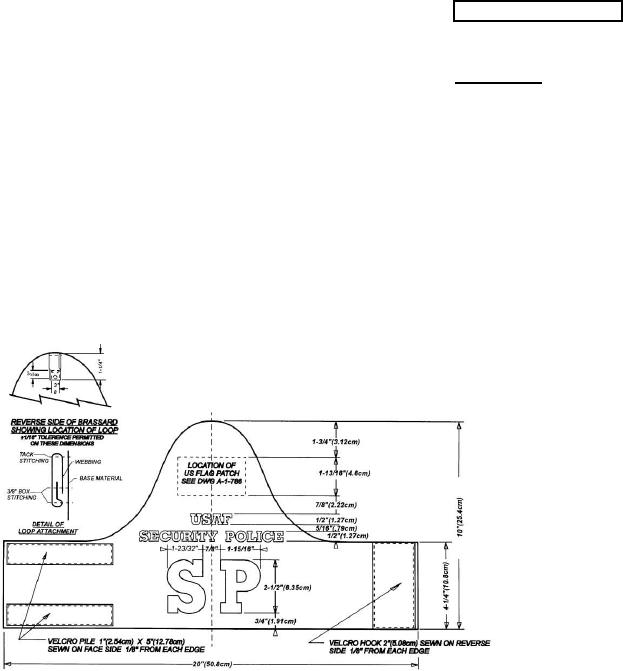

1. Lettering shall be embroidered to the base in the position shown.
2. The brassard shall be lined. The lining and base material shall be turned under 1/4 inch and
hemmed using Stitch Type EFa-1 with 12 stitches to the inch.
AMSC N/A
Page 1 of 2
FSC 8455
