INCH-POUND
MIL-DTL-1563/3B
6 January 2014
SUPERSEDING
MIL-DTL-1563/3A
30 April 1997
DETAIL SPECIFICATION SHEET

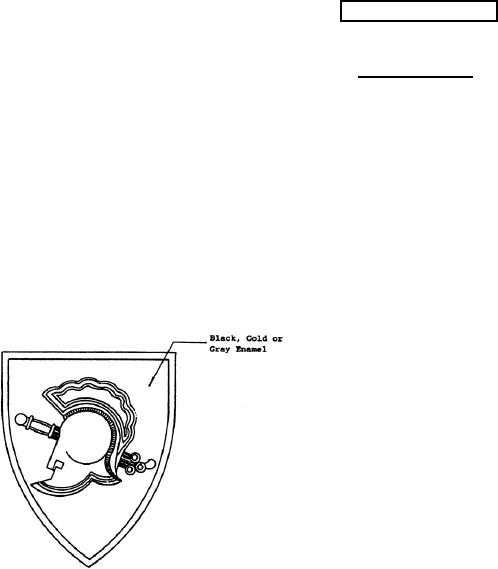

INSIGNIA, U.S.M.A., COLLAR, BLACK, GRAY OR GOLD SHIELD
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-B-1563.
DASH NO.
-1: Regular
-2: Subdued
-3: Regular
-4: Subdued
-5: Regular
-6: Subdued
MATERIAL:
-1, -3, -5:
BASE: Gilding Metal 95/5 (UNS Alloy No. C-210)
DEVICE: Red Brass 85/15 (UNS Alloy No. C-230)
-2, -4, -6:
BASE: Red Brass 85/15 (UNS Alloy No. C-230) or Gilding Metal 95/5
(UNS Alloy No. C-210)
DEVICE: Red Brass 85/15 (UNS Alloy No. C-230) or Gilding Metal 95/5
(UNS Alloy No. C-210)
AMSC N/A
Page 1 of 3
FSC 8455
