INCH-POUND
MIL-DTL-11484/50G
23 May 2005
SUPERSEDING
MIL-DTL-11484/50F
17 September 1996
DETAIL SPECIFICATION SHEET

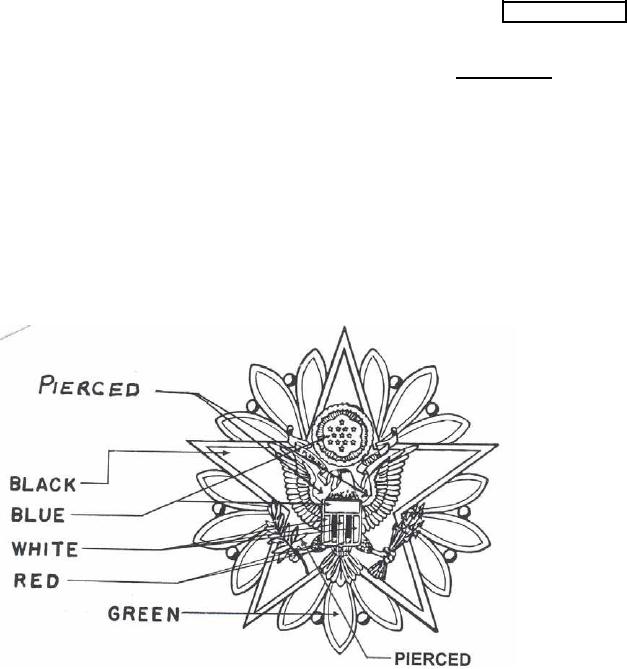

LAPEL BUTTON, ARMY STAFF IDENTIFICATION BADGE, ARMY
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Not less than 85/15 Rich-Low Brass
FINISH:
BASE: Hard Enameled or Epoxied, Gold Plated, Mirror-like Polished, and shall match
The Institute of Heraldry (TIOH) Metal Finish Chip Number 6.
EAGLE: Hard Enameled or Epoxied, Gold Plated, Matte Finished, Polished Highlights
and shall match TIOH Metal Finish Chip Number 8.
DIMENSIONS:
BASE:
HEIGHT (overall): 9/16 inch (REF)
WIDTH (overall): 17/32 inch (REF)
THICKNESS (at edge): 0.50 inch ± 0.005 inch
AMSC N/A
1 of 2
FSC 8455
