INCH - POUND
MIL-DTL-11484/367
24 November 2014
DETAIL SPECIFICATION SHEET
LAPEL BUTTON, NUCLEAR DETERRENCE OPERATIONS SERVICE MEDAL,
U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
DIMENSIONS:
HEIGHT: 1/8 inch (REF)
WIDTH: 21/32 inch (REF)
THICKNESS (At rim): 0.050 inch ± 0.010 inch
FINISH: 24K Gold, Mirror-like Polished, and shall match The Institute of Heraldry Metal Finish
Chip Number 6.

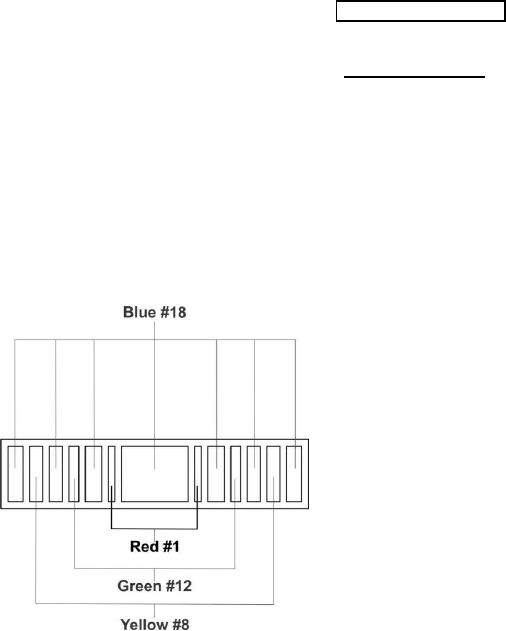

EPOXY: Epoxy resin shall be applied to the lapel button as indicated above, and shall match
TIOH Hard Enamel Color Chip Numbers listed below. Hard cloisonné enamel may be used in
AMSC N/A
Page 1 of 2
FSC 8455
