INCH-POUND
MIL-DTL-11484/21E
18 October 2005
SUPERSEDING
MIL-DTL-11484/21D
27 September 1996
DETAIL SPECIFICATION SHEET

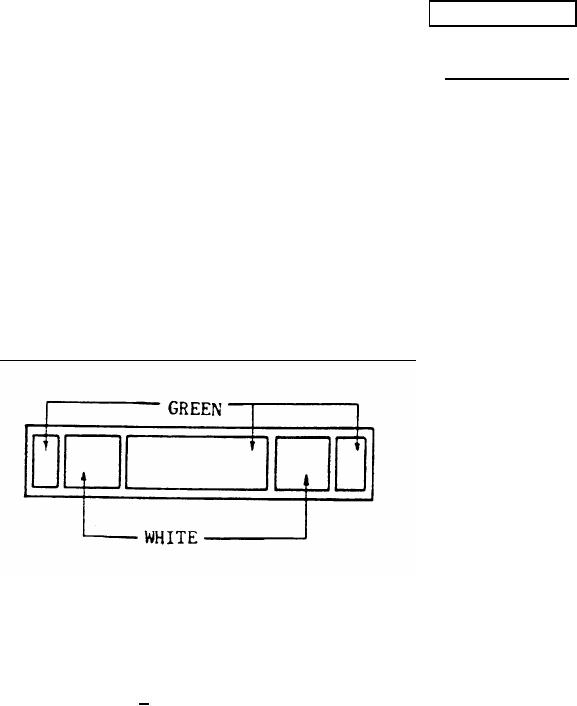

LAPEL BUTTON, COMMENDATION MEDAL, NAVY AND MARINE CORPS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Not less than 85/15 Rich-Low Brass.
DIMENSIONS:
HEIGHT (overall): 9/64 inch (REF)
WIDTH (overall): 21/32 inch (REF)
THICKNESS (at edge): 0.065 inch + 0.005 inch
FINISH: Hard Enameled or Epoxied, Gold Plated, Mirror-like Polished and shall match The
Institute of Heraldry (TIOH) Metal Finish Chip Number 6.
NOTES:
1. The term (REF) refers to the measurements taken from the Government furnished
hub or die.
AMSC N/A
FSC 8455
Page 1 of 2
