INCH-POUND
MIL-DTL-11132/5H
16 October 2001
SUPERSEDING
MIL-DTL-11132/5G
1 May 2001
DETAIL SPECIFICATION SHEET
INSIGNIA, GARRISON CAP, JUNIOR DIVISION AND BASIC COURSE, SENIOR DIVISION,
ROTC AND INSIGNIA, SERVICE CAP, BASIC COURSE, SENIOR DIVISION, ROTC, ARMY
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-11132 listed in that issue of the Department of
Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.

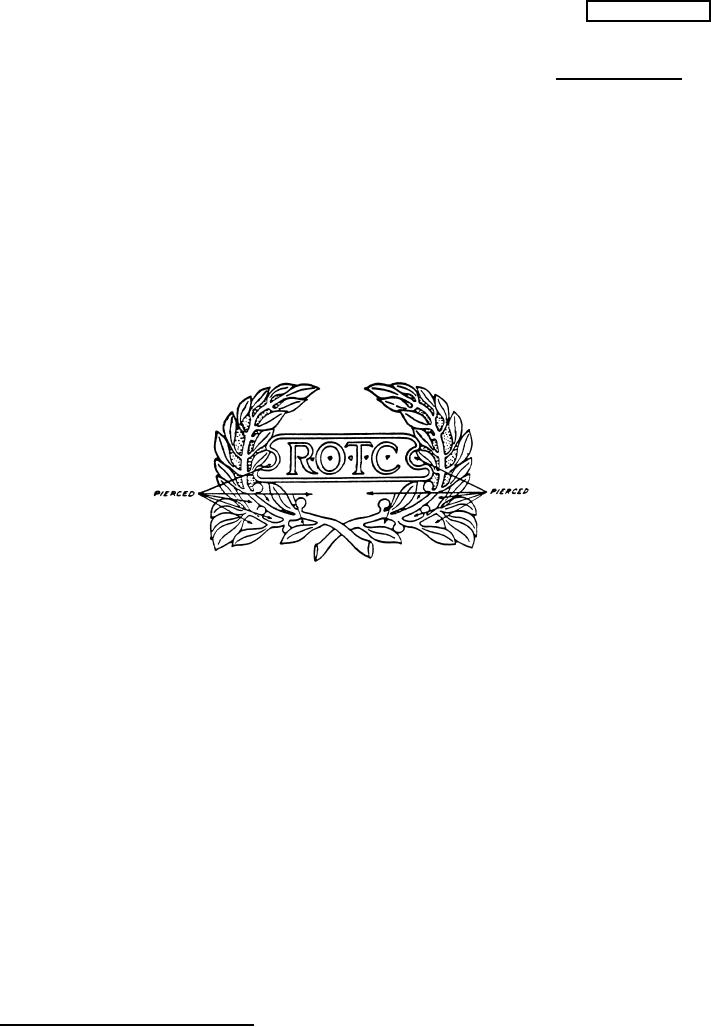

DASH NO.
-1: Insignia, Garrison Cap, Junior Division and Basic Course, Senior Division, ROTC,
Army
-2: Insignia, Service Cap, Basic Course, Senior Division, ROTC, Army
MATERIAL: Red Brass
FINISH: Matte Finish, Polished Highlights and shall match The Institute of Heraldry
(TIOH) Metal Finish Chip Number 3.
DIMENSIONS:
HEIGHT (overall): 1-3/16 inches (REF)
WIDTH (overall): 1-3/4 inch (REF)
THICKNESS (at the letter "R"): 0.070 inch ± 0.005 inch
AMSC N/A
1 of 2
FSC 8455
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
