NOT MEASUREMENT SENSITIVE
MIL-DTL-11132/40E
20 November 1998
SUPERSEDING
MIL-DTL-11132/40D
6 June 1997
DETAIL SPECIFICATION SHEET

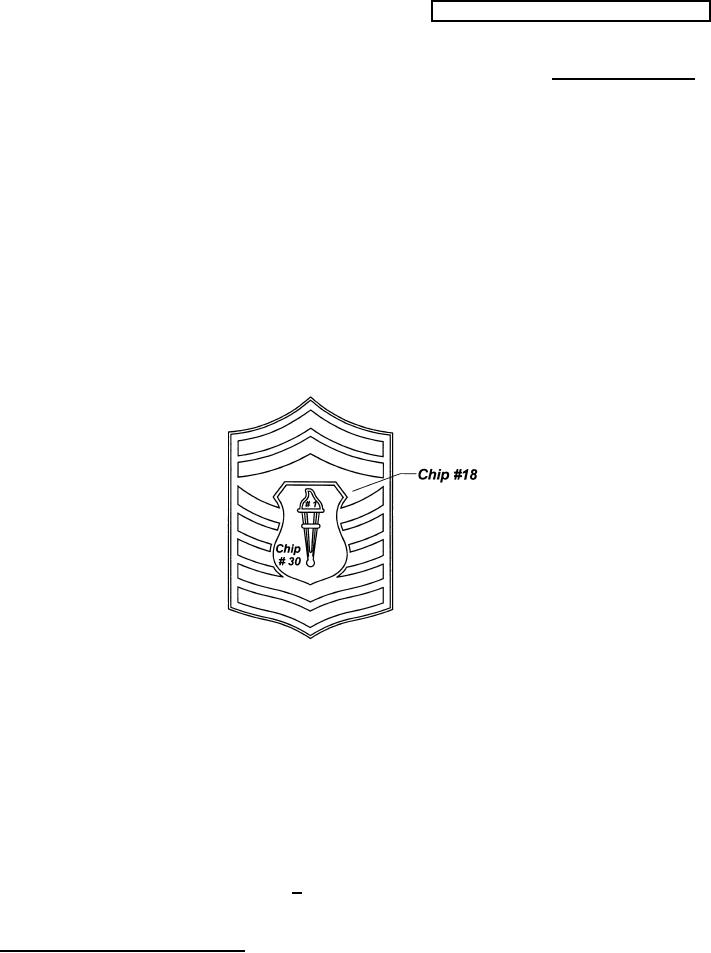

INSIGNIA, GRADE, CADET, SENIOR MASTER SERGEANT, JROTC, AIR FORCE
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-11132 listed in that issue of the Department of
Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.
MATERIAL: Gilding Metal
FINISH:
BASE: Hard Enameled, Nickel Plated, Mirror-like Polished and shall match TIOH Metal
Finish Chip Number 16.
DEVICE: Hard Enameled, Gold Plated, Mirror-like Polished and shall match TIOH
Metal Finish Chip Number 6.
DIMENSIONS:
BASE:
HEIGHT (Overall): 1-9/16 inches (REF)
WIDTH (Overall): 1-1/16 inches (REF)
THICKNESS (Edge): 0.065 inch + 0.005 inch
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
1 of 2
