INCH - POUND
MIL-DTL-11132/24H
4 March 2013
SUPERSEDING
MIL-DTL-11132/24G
20 November 1998
DETAIL SPECIFICATION SHEET
INSIGNIA, GRADE, CADET, MASTER SERGEANT JROTC, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-11132.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH:
BASE: Epoxy resin (Stoning epoxy), Nickel Plated, Mirror-like Polished and shall match The
Institute of Heraldry (TIOH) Metal Finish Chip Number 16.
DEVICE: Epoxy resin, 24K Gold Plated, Mirror-like Polished and shall match TIOH Metal Chip
Number 6.

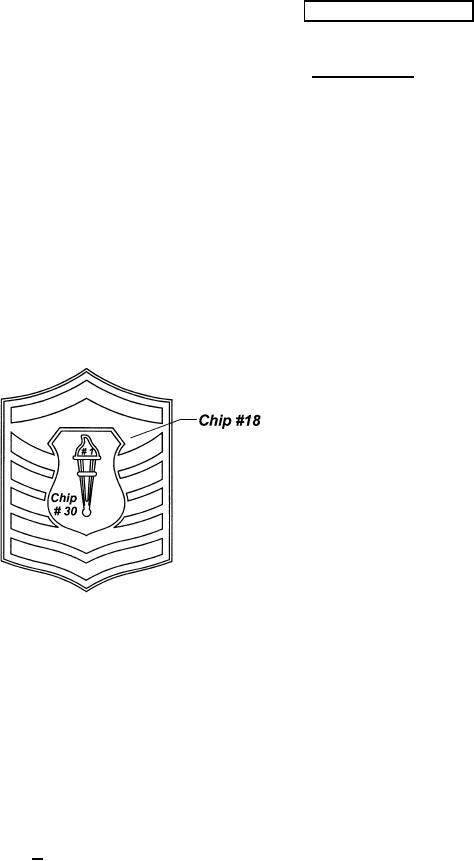

DIMENSIONS:
BASE:
HEIGHT (Overall): 1-3/8 inches (REF)
WIDTH (Overall): 1-1/16 inches (REF)
THICKNESS (Edge): 0.065 inch + 0.005 inch
AMSC N/A
Page 1 of 3
FSC 8455
