INCH-POUND
MIL-DTL-11132/20G
15 October 2007
SUPERSEDING
MIL-DTL-11132/20F
17 September 2002
DETAIL SPECIFICATION SHEET

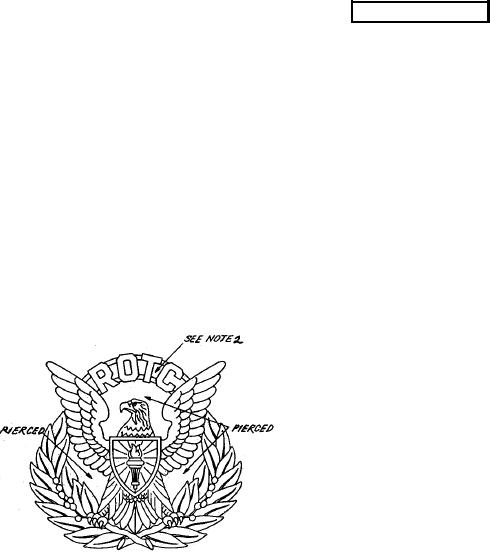

INSIGNIA, CAP, ADVANCE COURSE, SENIOR DIVISION, ROTC, ARMY
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-11132.
DASH NO.
-1: Male
-2: Female
MATERIAL: Red Brass
FINISH:
CAP INSIGNIA EXCEPT LETTERING: Gold Plated, Matte Finished, Polished
Highlights, and shall match The Institute of Heraldry (TIOH) Metal Finish Chip Number 8.
LETTERING: Gold Plated, Mirror-like Polished, and shall match TIOH Metal Finish
Chip Number 6.
DIMENSIONS:
HEIGHT (overall):
-1: 2-1/4 inches (REF)
-2: 1-5/8 inches (REF)
WIDTH (overall):
-1: 2-5/8 inches (REF)
-2: 1-3/4 inches (REF)
AMSC N/A
Page 1 of 3
FSC 8455
