NOT MEASUREMENT SENSITIVE
MIL-DTL-41819/31C
30 September 1996
SUPERSEDING
MIL-R-41819/31B
1 November 1994
DETAIL SPECIFICATION SHEET
RIBBON ATTACHMENT, NAVY "E"
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-41819 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
MATERIAL:
Red Brass or Nickel Silver
DASH NO.
-1: Letter E

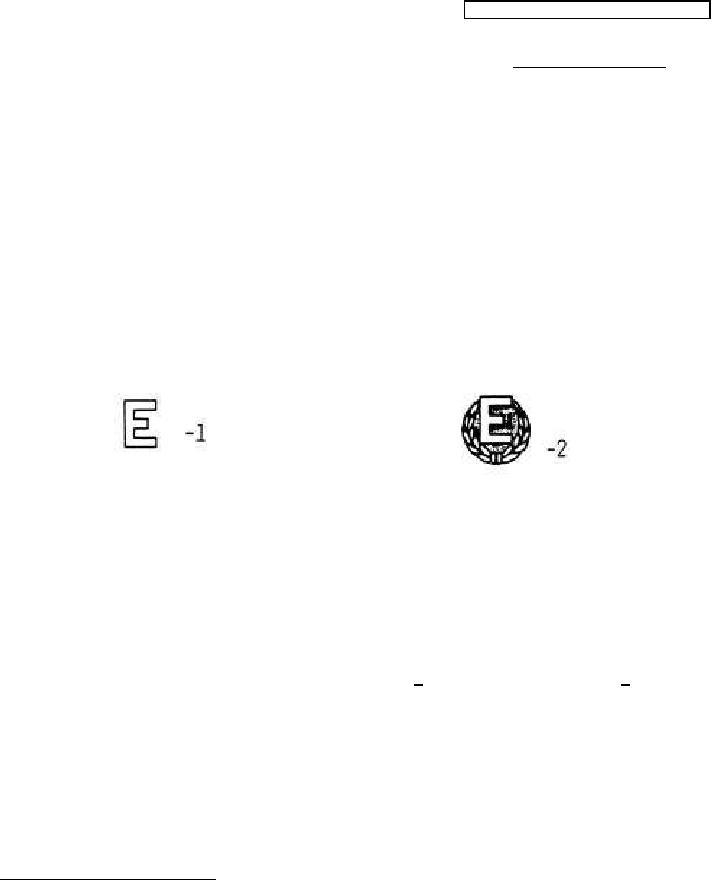

DIMENSIONS:
-2: Letter E with Wreath
HEIGHT (Overall):
-1: 3/16 inch (0.48 cm) (REF)
-2: 1/4 inch (0.64 cm) (REF)
WIDTH (Overall):
-1: 1/8 inch (0.32 cm) (REF)
-2: 1/4 inch (0.64 cm) (REF)
THICKNESS (At Thickest Point): 0.055 inch + 0.005 inch (0.140 cm +
0.012 cm)
FINISH:
Nickel Plated (Red Brass Only), Silver Plated, Oxidized,
Relieved, Matte Finish and shall match TIOH Metal Finish
Number 14.
NOTES:
1. The term (REF) refers to the measurements taken from the
Government furnished hub or die.
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
