INCH-POUND
MIL-DTL-41819/3G
25 July 2007
SUPERSEDING
MIL-DTL-41819/3F
22 July 2004
DETAIL SPECIFICATION SHEET

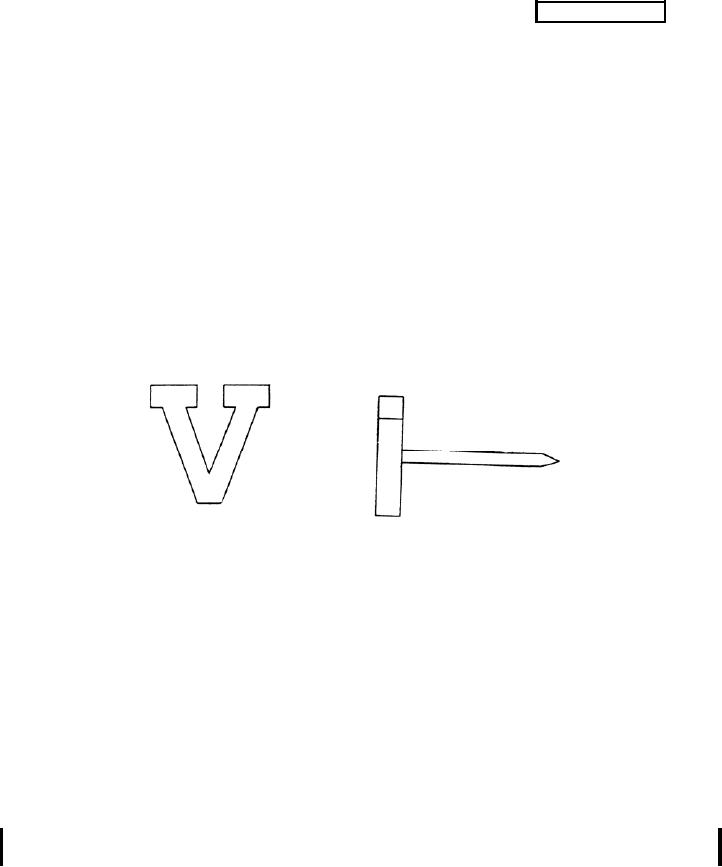

RIBBON ATTACHMENT, LETTER "V"
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-41819.
MATERIAL: Red Brass
DASH NO.
-1: Regular Size
DIMENSIONS:
-2: Miniature Size
HEIGHT:
-1: 1/4 inch (REF)
-2: 1/8 inch (REF)
WIDTH:
-1: 1/4 inch (REF)
-2: 1/8 inch (REF)
THICKNESS (at thickest point):
-1: 0.043 inch ± 0.005 inch
-2: 0.031 inch ± 0.005 inch
FINISH: Matte Finish and shall match The Institute of Heraldry (TIOH) Metal Finish Chip
Number 2.
NOTES:
1. The term (REF) refers to the measurements taken from the Government furnished
hub or die.
AMSC N/A
1 of 2
FSC 8455
