INCH-POUND
MIL-DTL-41819/24E
25 February 2013
SUPERSEDING
MIL-DTL-41819/24D
30 September 1996
DETAIL SPECIFICATION SHEET
RIBBON ATTACHMENT, BRAVERY U.S. NAVY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-R-41819.
MATERIAL: Red Brass 85/15 (UNS Alloy No.C-230) or Nickel Silver 65/15
(UNS Alloy C-752)
FINISH: Nickel Plated (C-230 only), Silver Plated, Oxidized, Buffed Relieved, Matte Finish,
Polished Highlights (Letters) and shall match The Institute of Heraldry Metal Finish Chip
Number 15.

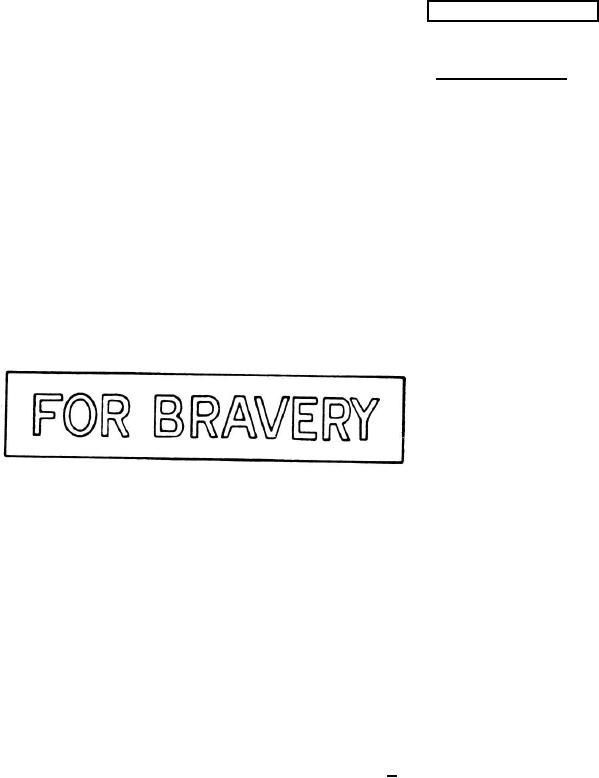

DIMENSIONS:
HEIGHT: 9/32 inch (REF)
WIDTH: 1- 3/8 inches (REF)
THICKNESS (On letters): 0.070 0.005 inch
ATTACHMENT DEVICE:
The attaching device shall be located on the horizontal center line of the ribbon
attachment with the prongs equidistant from the edges and 7/8 inch + 1/32 inch apart.
NOTES:
The term (REF) refers to the measurements taken from the Government furnished hub
or die.
