INCH-POUND
MIL-DTL-41819/22F
25 February 2013
SUPERSEDING
MIL-DTL-41819/22E
30 September 1996
DETAIL SPECIFICATION SHEET

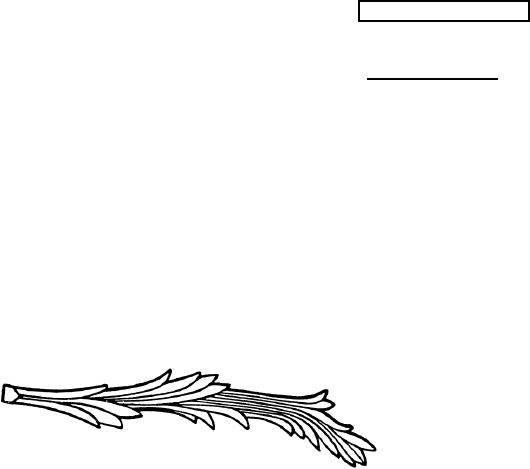

RIBBON ATTACHMENT, PALM, VIETNAMESE GALLANTRY CROSS
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-R-41819.
DASH NO.
-1: Regular Size
-2: Miniature Size
MATERIAL: (-1 and -2) Red Brass 85/15 (UNS Alloy No.C-230)
FINISH: (-1 and -2) Brass, Oxidized, Buffed Relieved and shall match The Institute of
Heraldry Metal Finish Chip Number 4.
DIMENSIONS:
HEIGHT (Overall):
1: 1/4 inch (REF)
-2: 5/32 inch (REF)
WIDTH (Overall):
-1: 1-1/8 inches (REF)
-2: 9/16 inch (REF)
THICKNESS (At edge):
-1: 0.063 0.005 inch
-2: 0.045 0.005 inch
AMSC N/A
Page 1 of 2
FSC 8455
