INCH-POUND
MIL-DTL-41819/15E
25 February 2013
SUPERSEDING
MIL-DTL-41819/15D
30 September 1996
DETAIL SPECIFICATION SHEET
RIBBON ATTACHMENT, LETTER "A"
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-R-41819.
MATERIAL: Red Brass 85/15 (UNS Alloy No.C-230)
FINISH: Oxidized

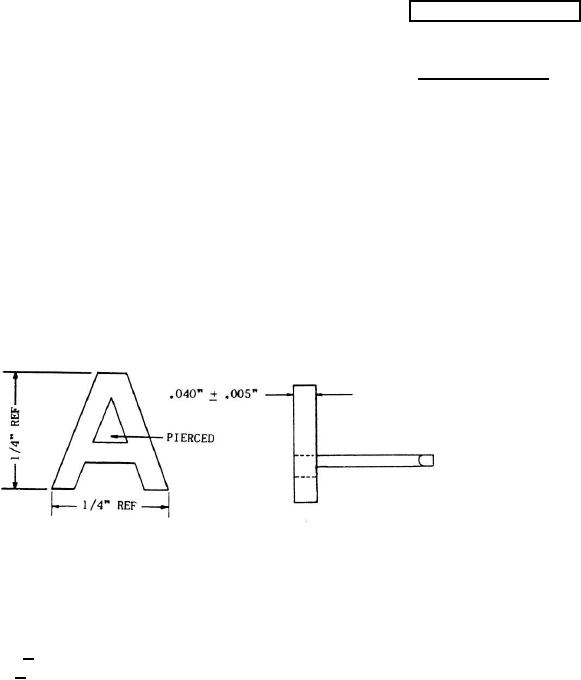

DIMENSIONS:
HEIGHT: 1/4 inch + 1/64 inch (REF)
WIDTH: 1/4 inch + 1/64 inch (REF)
THICKNESS (At thickest point): 0.040 0.005 inch
ATTACHMENT DEVICE:
1: The attaching device shall be a staple type prong.
2: The prong shall be centered on the reverse side of the ribbon attachment in the center
of the bar on the "A".
NOTES:
1. The term (REF) refers to the measurements taken from the Government furnished
hub or die.
2. Ribbon attachment "A" shall be die cut.
3. Piercing shall be as indicated.
