INCH-POUND
MIL-DTL-41819/14E
25 February 2013
SUPERSEDING
MIL-DTL-41819/14D
30 September 1996
DETAIL SPECIFICATION SHEET
RIBBON, ATTACHMENT, LETTER "W"
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-R-41819.
M
ATERIAL: Red Brass 85/15 (UNS Alloy No. C-230) or Nickel Silver 65/15
(UNS Alloy C-752)
FINISH: Nickel Plated (C-230 only) Mirror-like Polished and shall match The Institute of
Heraldry Metal Finish Chip Number 16.

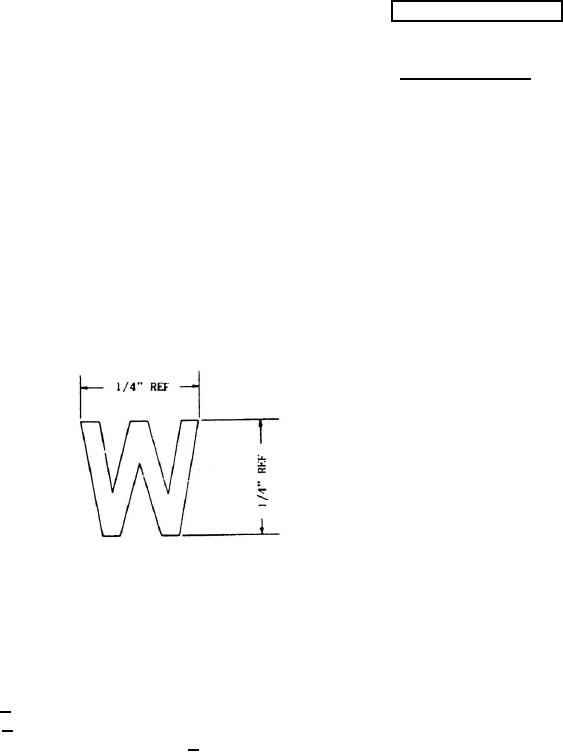

DIMENSIONS:
HEIGHT: 1/4 inch + 1/64 inch (REF)
WIDTH: 1/4 inch + 1/64 inch (REF)
THICKNESS (At thickest point): 0.055 inch + .005 inch
ATTACHING DEVICE:
1. The attaching device shall be two single post type prongs.
2. The prongs shall be located on the reverse side of the ribbon attachment at the
intersection of each outside leg of the "W" and the horizontal center line.
AMSC N/A
Page 1 of 2
FSC 8455
