INCH-POUND
MIL-DTL-3943/367
24 November 2014
DETAIL SPECIFICATION SHEET
MEDAL, NUCLEAR DETERRENCE OPERATIONS SERVICE MEDAL, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet, the latest issue of MIL-DTL-3943,

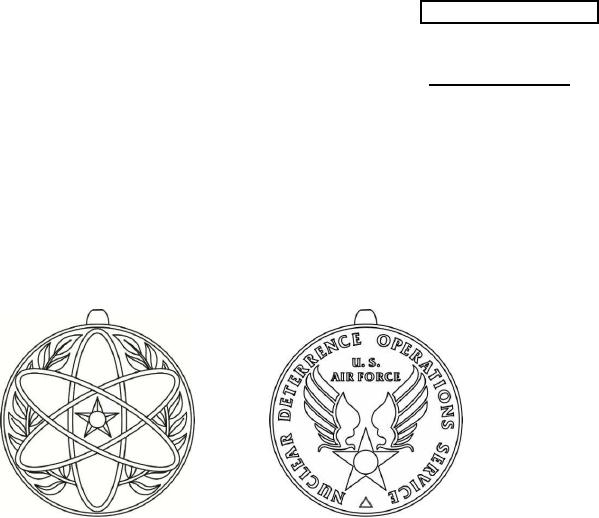

OBVERSE
REVERSE
DASH NO.
-1: Regular Size
-2: Miniature Size
MATERIAL: Red Brass 85/15 (UNS Alloy NO. C-230)
FINISH: Brass, Oxidized, Buffed Relieved and shall match The Institute of Heraldry Metal
Finish Chip Number 4.
DIMENSIONS: (Including Lug)
HEIGHT:
-1: 1-3/8 inches (REF)
-2: 11/16 inch (REF)
WIDTH:
-1: 1-1/4 inches (REF)
-2: 5/8 inch (REF)
THICKNESS (At thickest point)
-1: 0.127 inch ± 0.010 inch
-2: 0.110 inch ± 0.010 inch
AMSC N/A
1 of 2
FSC 8455
