INCH-POUND
MIL-DTL-3943/33G
1 October 2007
SUPERSEDING
MIL-DTL-3943/33F
1 May 1997
DETAIL SPECIFICATION SHEET
DECORATION, UNIT AWARDS AND CITATIONS, AIR FORCE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3943.
MATERIAL: Red Brass
FINISH: Gold Plated, Matte Finish, Polished Highlights and shall match The Institute of
Heraldry (TIOH) Metal Finish Chip Number 8.

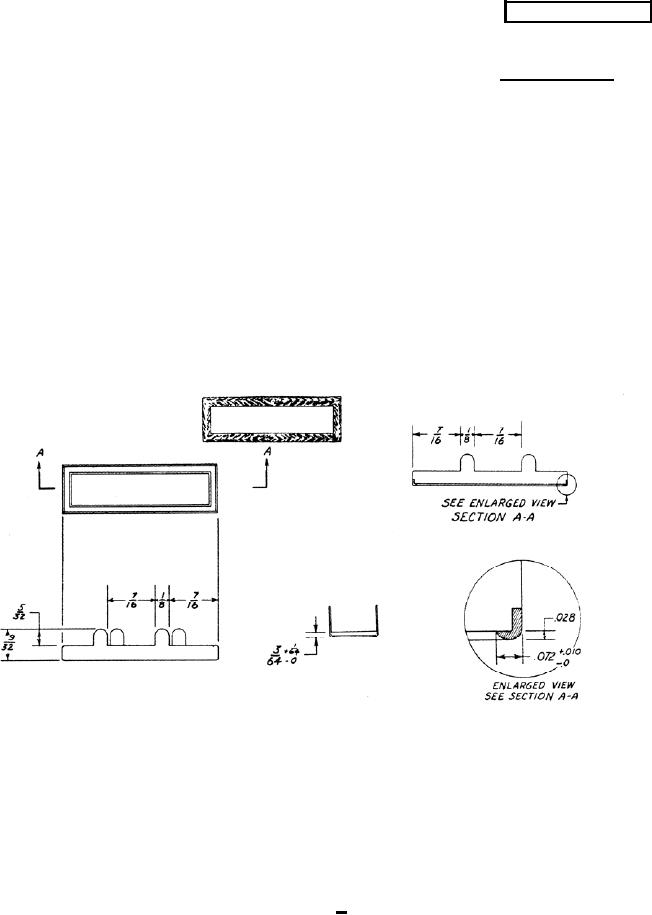

DIMENSIONS:
HEIGHT (overall): 7/16 inches (REF)
WIDTH (overall): 1-7/16 inches (REF)
THICKNESS: Frame to be made from 0.022 + 0.002 inch stock
AMSC N/A
Page 1 of 2
FSC 8455
