INCH-POUND
MIL-DTL-3943/166C
19 February 2010
SUPERSEDING
MIL-DTL-3943/166B
9 December 1998
DETAIL SPECIFICATION SHEET
DECORATION, AERIAL ACHIEVEMENT MEDAL, CIVILIAN, AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3943.

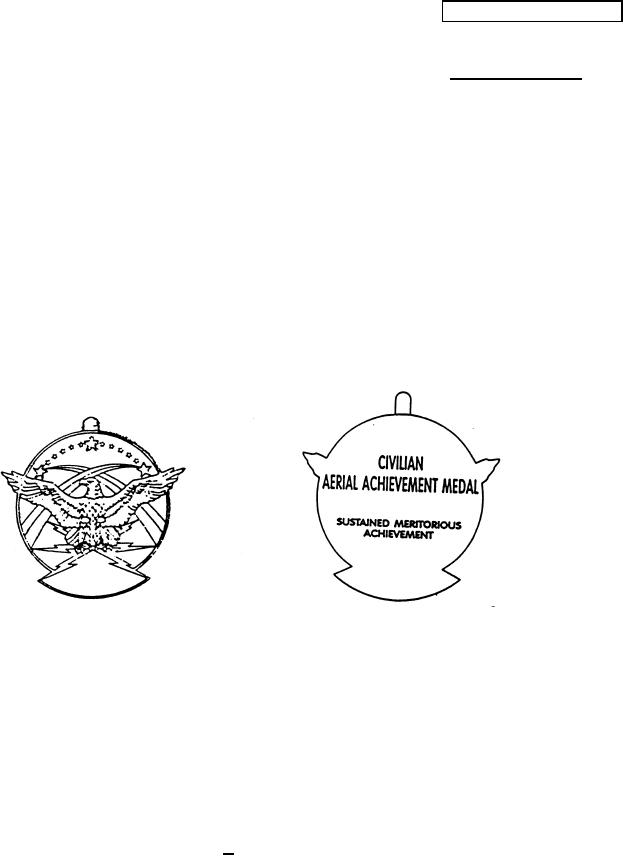

OBVERSE
REVERSE
MATERIAL: Nickel Silver
FINISH: Silver Plated, Oxidized, Buffed Relieved, Matte Finish and shall match
The Institute of Heraldry (TIOH) Metal Finish Chip number 14.
DIMENSIONS:
HEIGHT (including lug): 1-3/4 inches (REF)
WIDTH (overall): 1-3/4 inches (REF)
THICKNESS (at wing tips): 0.125 inch + 0.010 inch
NOTES:
1. The term (REF) refers to the measurements taken from the Government furnished
hub or die.
AMSC N/A
Page 1 of 2
FSC 8455
