INCH-POUND
MIL-DTL-3943/161B
19 February 2010
SUPERSEDING
MIL-DTL-3943/161A
1 May 1997
DETAIL SPECIFICATION SHEET

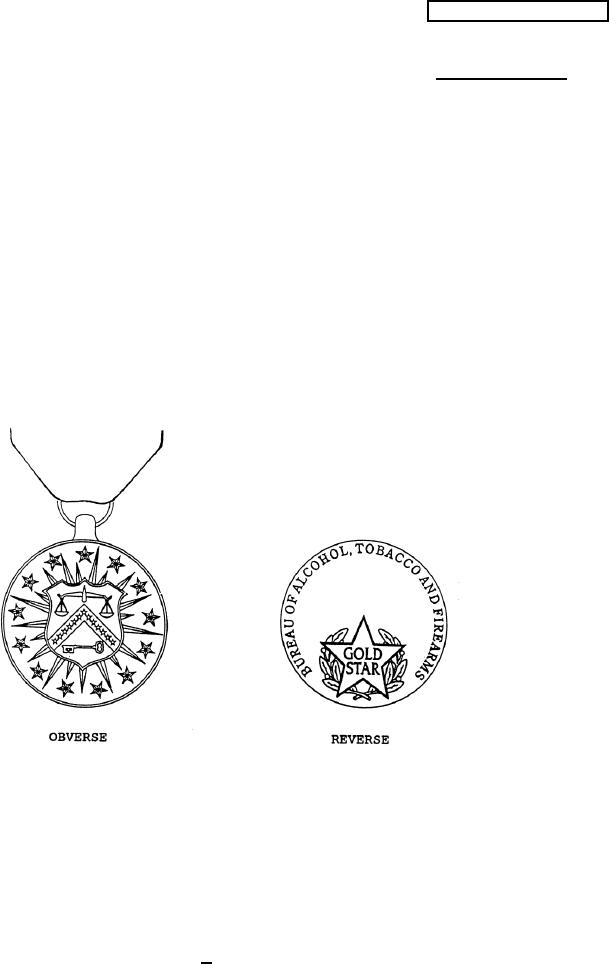

DECORATION, GOLD STAR MEDAL,
BUREAU OF ALCOHOL, TOBACCO AND FIREARMS
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3943.
MATERIAL: Red Brass
FINISH: 24K Gold Plated, Matte Finish, Polished Highlights and shall match The Institute of
Heraldry (TIOH) Metal Finish Chip Number 8.
DIMENSIONS:
DIAMETER: 1-1/2 inches (REF)
HEIGHT (including lug): 1-3/4 inches (REF)
THICKNESS (thickest point): 0.115 inch + 0.010 inch
AMSC N/A
Page 1 of 2
FSC 8455
