INCH-POUND
MIL-DTL-3943/117E
7 April 2014
SUPERSEDING
MIL-DTL-3943/117D
15 January 2008
DETAIL SPECIFICATION SHEET

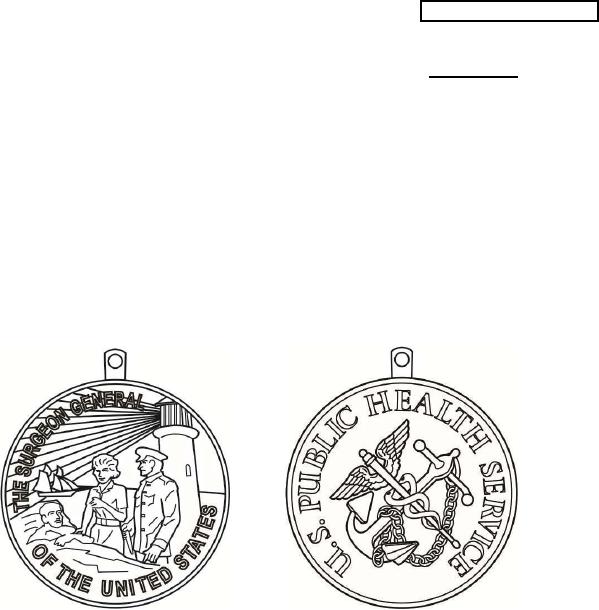

DECORATION, SURGEON GENERAL'S MEDALLION, U.S. PUBLIC HEALTH SERVICE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the issue of MIL-DTL-3943.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH: 24K Gold Plated, Matte Finished, Polished Highlights and shall
match The Institute of Heraldry Metal Finish Chip Number 8.
DIMENSIONS:
HEIGHT (Including lug): 1-9/16 inch (REF)
DIAMETER: 1-3/8 inch (REF)
THICKNESS (At thickest point): 0.155 inch ± 0.010 inch
DECORATION SET AND CASE: Decoration set shall consist of a regular size medal packaged
in a presentation case conforming to MIL-C-14633, Type XV, Style 1, with a Type I, Class 1 or
1A pad.
AMSC N/A
Page 1 of 3
FSC 8455
