INCH-POUND
MIL-DTL-3943/104E
16 April 2014
SUPERSEDING
MIL-DTL-3943/104D
15 January 2008

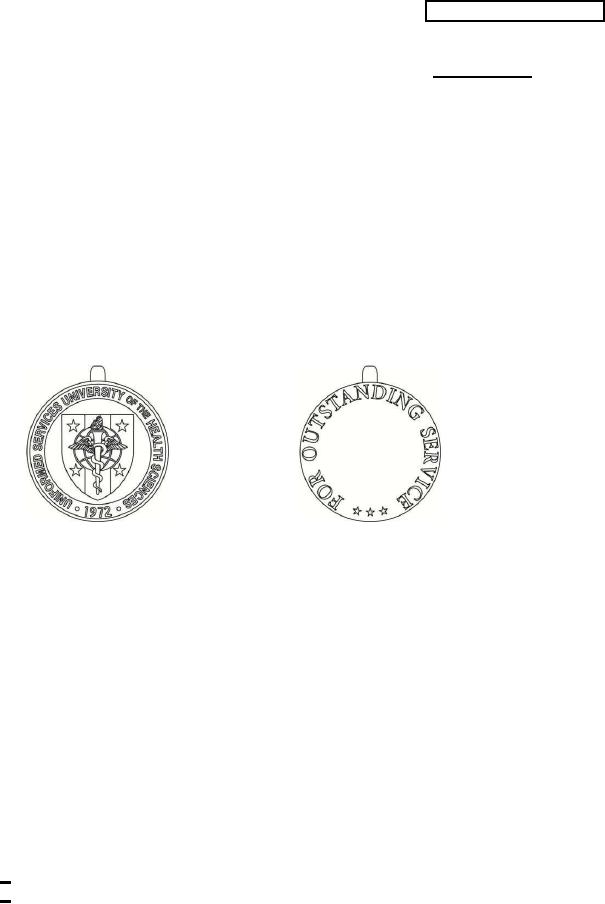

DETAIL SPECIFICATION SHEET
DECORATION, OUTSTANDING SERVICE MEDAL,
UNIFORMED SERVICES, UNIVERSITY OF THE HEALTH SCIENCES
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the issue of MIL-DTL-3943.
DASH NO.
-1: Regular Size
-2: Miniature Size
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH: Oxidized, Relieved, Polished Highlights, Matte Finish and shall match The Institute
of Heraldry Standard Metal Finish Chip Number 4.
DIMENSIONS:
HEIGHT (Including lug):
-1: 1-7/16 inches (REF)
-2: 23/32 inch (REF)
DIAMETER:
-1: 1-1/4 inches (REF)
-2: 5/8 inch (REF)
THICKNESS (At edge):
-1: 0.100 inch + 0.010 inch
-2: 0.070 inch + 0.010 inch
AMSC N/A
Page 1 of 2
FSC 8455
