INCH-POUND
MIL-DTL-3628/92C
5 August 2014
SUPERSEDING
MIL-DTL-3628/92B
11 June 2001
DETAIL SPECIFICATION SHEET
BADGE, OCCUPATIONAL, INTELLIGENCE, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.

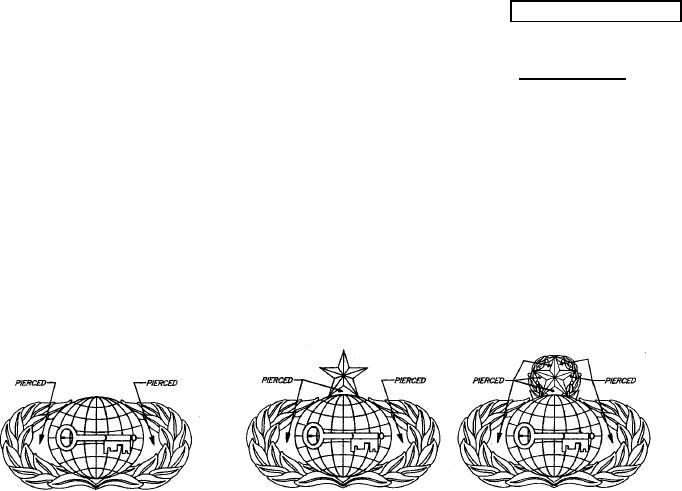

BASIC
SENIOR
MASTER
DASH NO.
-1: Basic Regular Size
-4: Basic Mid Size
-2: Senior Regular Size
-5: Senior Mid Size
-3: Master Regular Size
-6: Master Mid Size
MATERIAL (-1 through -6): Red Brass 85/15 (UNS Alloy No.C-230) or Nickel Silver 65/18
(UNS Alloy No.C-752) Zinc Aluminum.
FINISH: (-1through -6) Nickel Plated (Red Brass only), Mirror-like Polished, and shall match
The Institute of Heraldry Metal Finish Chip Number 16
DIMENSIONS:
HEIGHT (Overall):
-1: 13/16 inch (REF)
-2: 1-5/32 inches (REF)
-3: 1-1/8 inches (REF)
-4: 5/8 inch (REF)
-5: 7/8 inch (REF)
-6: 29/32 inch (REF)
WIDTH (Overall):
-1 to -3: 1-5/8 inches (REF)
-4 to -6: 1-1/4 inches (REF)
AMSC N/A
Page 1 of 2
FSC 8455
