INCH-POUND
MIL-DTL-3628/70E
2 November 2012
SUPERSEDING
MIL-DTL-3628/70D
15 November 1996
DETAIL SPECIFICATION SHEET

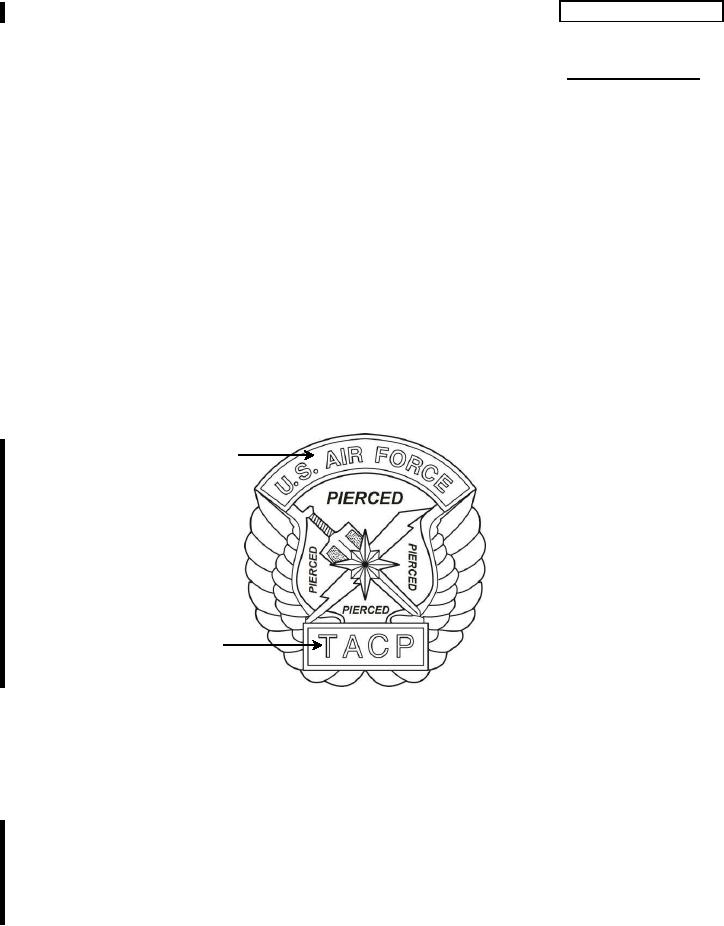

BADGE, QUALIFICATION, TACTICAL AIR CONTROL PARTY, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
BLACK #26
BLACK #26
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230) or Nickel Silver 65/18
(UNS Alloy No. C-752)
DIMENSIONS:
HEIGHT: 1-23/64 inches (REF)
WIDTH: 1-9/32 inches (REF)
THICKNESS (Across center): 0.125 inch ± 0.010 inch
AMSC N/A
Page 1 of 2
FSC 8455
