INCH-POUND
MIL-DTL-3628/54E
21 April 2014
SUPERSEDING
MIL-DTL-3628/54D
15 November 1996
DETAIL SPECIFICATION SHEET

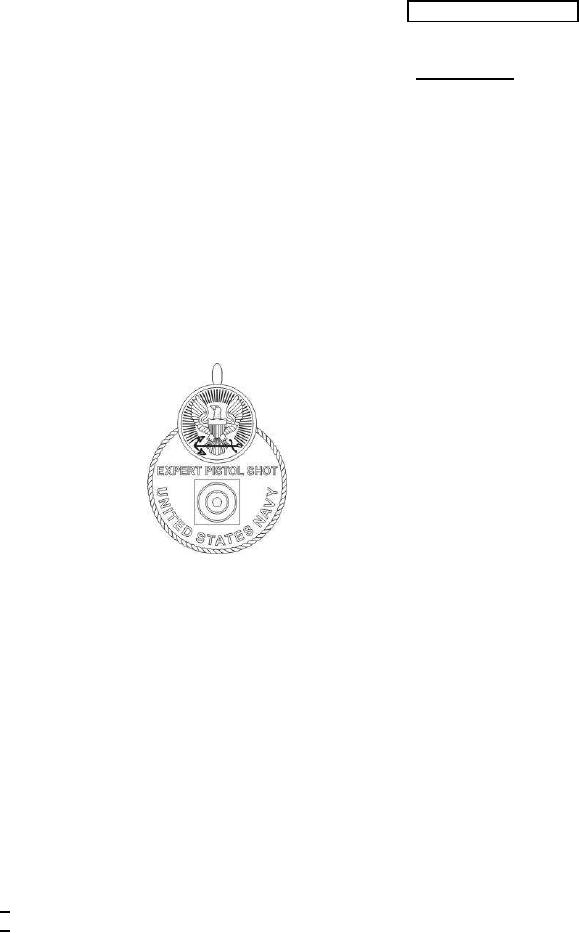

BADGE, QUALIFICATION, EXPERT PISTOL SHOT, U.S. NAVY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
DASH NO.
-1: Regular Size
-2: Miniature Size
MATERIAL (-1 and -2): Red Brass 85/15 (UNS Alloy No.C-230)
FINISH: (-1 and -2) Brass, Matte Finish, and shall match The Institute of Heraldry Metal Finish
Chip Number 2.
DIMENSIONS:
HEIGHT (Excluding lug):
-1: 1-9/16 inches (REF)
-2: 25/32 inch (REF)
WIDTH (Overall):
-1: 1-9/32 inches (REF)
-2: 41/64 inch (REF)
THICKNESS (On eagle breast):
-1: 0.125 inch + 0.010 inch
-2: 0.090 inch + 0.010 inch
AMSC N/A
Page 1 of 2
FSC 8455
