INCH-POUND
MIL-DTL-3628/52H
8 November 2001
SUPERSEDING
MIL-DTL-3628/52G
15 November 1996
DETAIL SPECIFICATION SHEET
BADGE, OCCUPATIONAL, WEAPONS CONTROLLER, AIR FORCE
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-3628 listed in that issue of the Department of
Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.

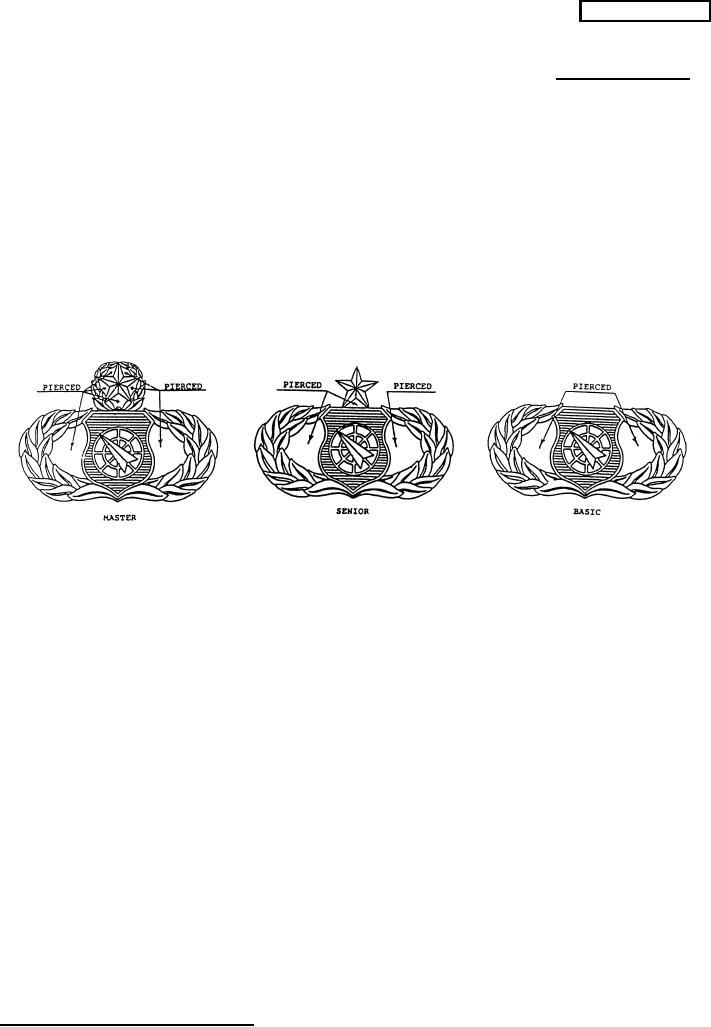

DASH NO.
-1: Basic, Regular Size
-4: Basic, Mid Size
-2: Senior, Regular Size
-5: Senior, Mid Size
-3: Master, Regular Size
-6: Master, Mid Size
MATERIAL: Red Brass or Nickel Silver
FINISH: Nickel Plated (Red Brass only), Mirror-like Polished and shall match The Institute
of Heraldry (TIOH) Metal Finish Chip Number 16.
DIMENSIONS:
HEIGHT (overall):
-1: 3/4 inch (REF)
-2: 1-1/32 inches (REF)
-3: 1-5/32 inches (REF)
-4: 9/16 inch (REF)
-5: 57/64 inch (REF)
-6: 57/64 inch (REF)
AMSC N/A
1 of 2
FSC 8455
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
