INCH-POUND
MIL-DTL-3628/39G
15 August 2009
SUPERSEDING
MIL-DTL-3628/39F
15 November 1996
DETAIL SPECIFICATION SHEET

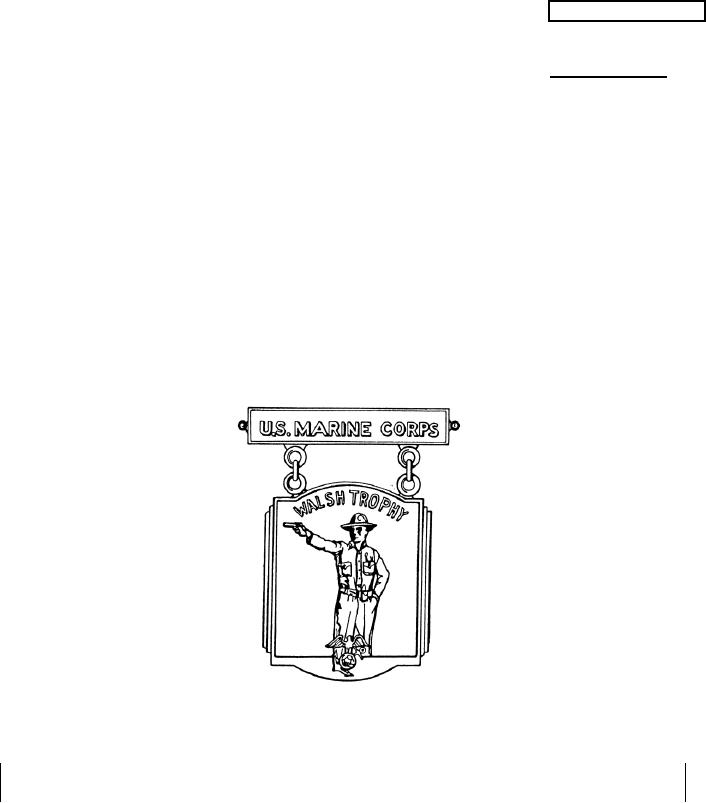

BADGE, QUALIFICATION, MARINE CORPS PISTOL CHAMPIONSHIP (WALSH TROPHY)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-DTL-3628.
MATERIAL: Red Brass
FINISH (Pendant and Suspension Bar):
OBVERSE: Gold Plated, Polished Highlights and shall match The Institute of Heraldry
Metal Finish Chip Number 8.
REVERSE: Gold Plated, Mirror-like Polished and shall match TIOH Metal Finish Chip
Number 6.
DIMENSIONS:
HEIGHT (overall):
ASSEMBLED: 2 inches (REF)
PENDANT (excluding lugs): 1-15/32 inches (REF)
SUSPENSION BAR (excluding lugs): 9/32 inch (REF)
AMSC N/A
Page 1 of 2
FSC 8455
