INCH-POUND
MIL-DTL-3628/32K
28 April 2014
SUPERSEDING
MIL-DTL-3628/32J
15 November 1996

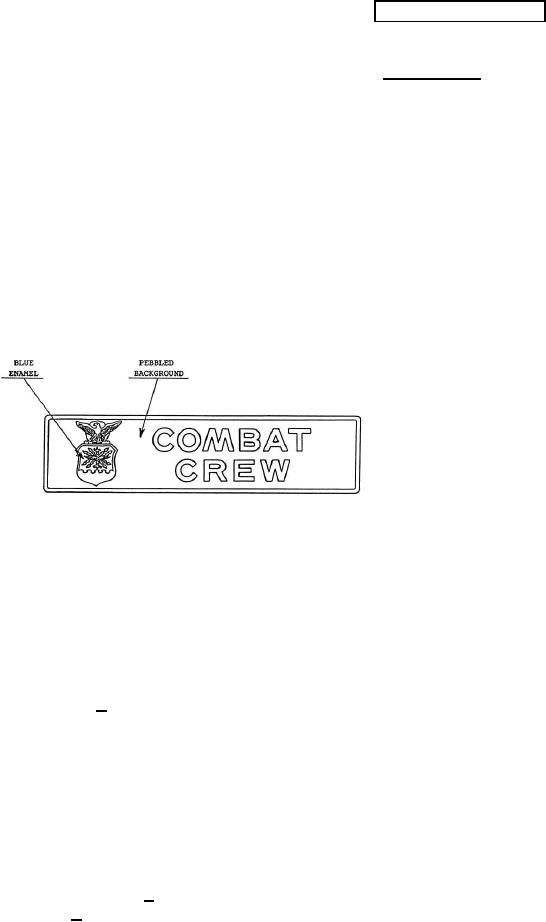

DETAIL SPECIFICATION SHEET
BADGE, QUALIFICATION, COMBAT CREW MEMBER, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230) or Nickel Silver 65/35
(UNS Alloy No C-752)
FINISH: Nickel Plated, Mirror like Polished and shall match The Institute of Heraldry
(TIOH) Metal Finish Chip Number 16.
DIMENSIONS:
HEIGHT: 3/4 inch (REF)
WIDTH: 3 inches (REF)
THICKNESS: (At rim): 0.070 inch + 0.005 inch
EPOXY:
Epoxy resin (stoning epoxy) area shall be blue as indicated and shall match TIOH color
chip number 18. Epoxy resin shall be smooth and flush with the dike lines; however, the
epoxy need not be stoned.
ATTACHING DEVICE:
1: Attaching device shall be two prongs and clutches.
2: Two prongs shall be located 1/4 inch + 1/64 inch from the top of the badge equidistant
from each end and 2-1/2 inches + 1/16 inch apart.
AMSC N/A
Page 1 of 2
FSC 8455
