INCH-POUND
MIL-DTL-3628/104E
28 April 2014
SUPERSEDING
MIL-DTL-3628/104D
31 May 2007
DETAIL SPECIFICATION SHEET
BADGE, OCCUPATIONAL, CHAPLAIN ASSISTANT, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
DASH NO.

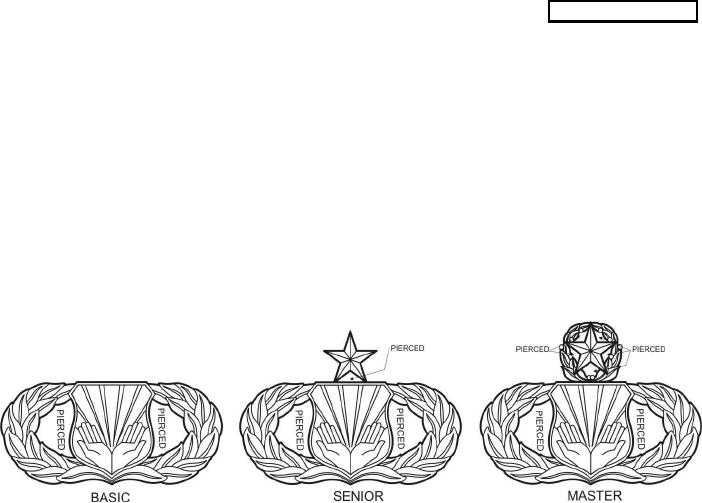

-1: Basic, Regular Size
-4: Basic, Mid Size
-2: Senior, Regular Size
-5: Senior, Mid Size
-3: Master, Regular Size
-6: Master, Mid Size
MATERIAL: Red Brass 85/15 (UNS Alloy C-230)
FINISH: Nickel Plated, Mirror-like Polished and shall match The Institute of Heraldry Metal
Finish Chip Number 16.
DIMENSIONS:
HEIGHT (Overall):
-1: 3/4 inch (REF)
-2: 1-1/8 inches (REF)
-3: 1-3/16 inches (REF)
-4: 9/16 inch (REF)
-5: 55/64 inch (REF)
-6: 57/64 inch (REF)
AMSC N/A
1 of 2
FSC 8455
