INCH-POUND
MIL-DTL-3628/100C
28 April 2014
SUPERSEDING
MIL-DTL-3628/100B
23 January 2002
DETAIL SPECIFICATION SHEET
BADGE, OCCUPATIONAL, COMMUNICATION, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.

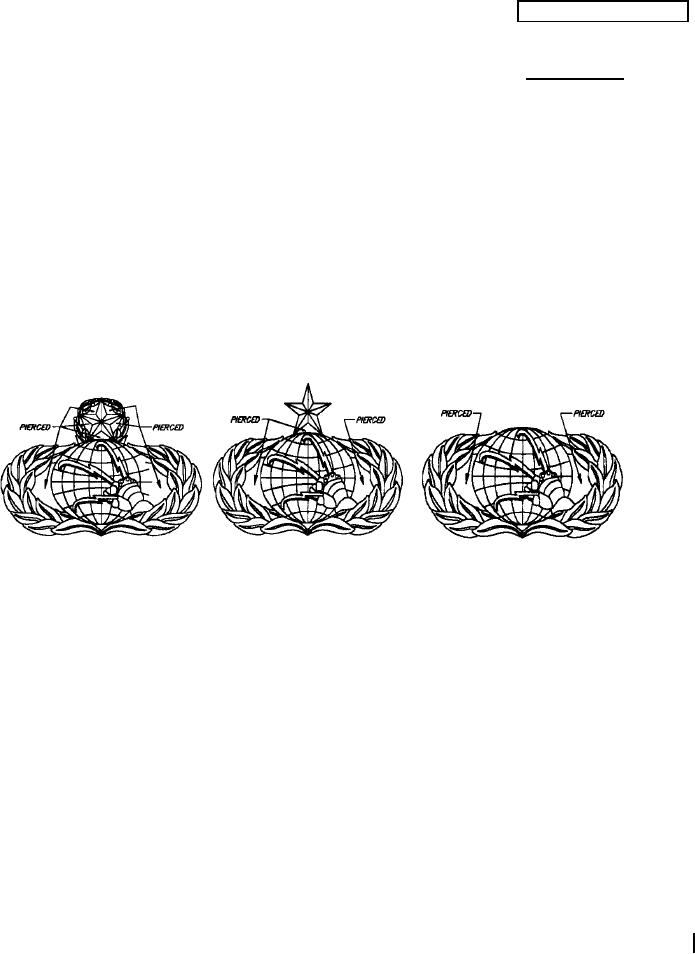

MASTER
SENIOR
BASIC
DASH NO.
-1: Basic Regular Size
-4: Basic Mid Size
-2: Senior Regular Size
-5: Senior Mid Size
-3: Master Regular Size
-6: Master Mid Size
MATERIAL (-1 through -6): Red Brass 85/15 (UNS Alloy No.C-230) or Nickel Silver 65/35
(UNS Alloy No. 752)
FINISH: (-1through -6) Nickel Plated (Red Brass Only), Mirror-like Polished, and shall match
The Institute of Heraldry Metal Finish Chip Number 16.
AMSC N/A
Page 1 of 2
FSC 8455
