INCH-POUND
MIL-DTL-3476/6C
21 April 2014
SUPERSEDING
MIL-DTL-3476/6B
20 August 1997
DETAIL SPECIFICATION SHEET
BRASSARD, CAREER APPRAISAL, U.S. NAVY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-3476.
MATERIAL:
BASE: Facing Cloth
LETTERING: Embroidered (Rayon Yarn)
COLOR:
BASE: Dark Blue (Cable No. 65012)
LETTERS: White (Cable No. White HA 67101)
CONSTRUCTION DETAILS:

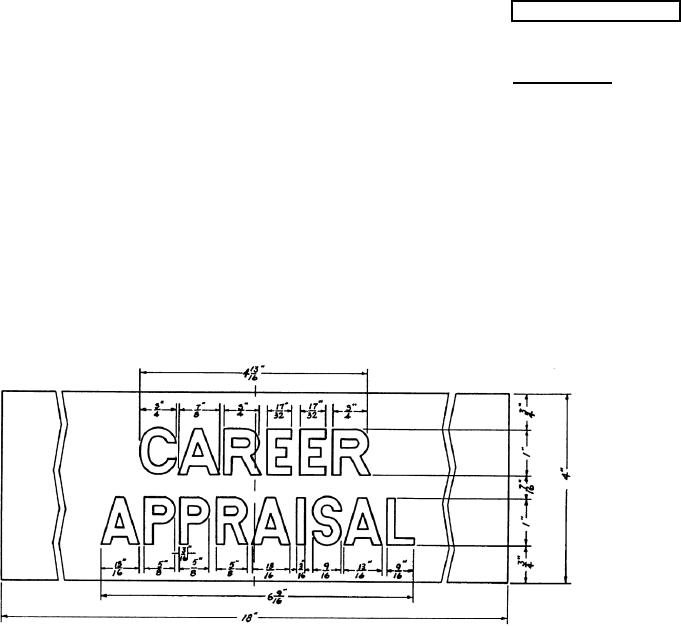

1. The letters shall be embroidered on the base in the position shown using 75/3 ply white rayon
yarn (See The Institute of Heraldry Drawing Number B-8-55). The facing cloth shall be reinforced
with buckram. Excess buckram shall be neatly trimmed after embroidering.
2. The brassard shall have a 3/8 inch hem on all sides. Hemming shall be accomplished using
stitch Type EFa-1 with 12 stitches to the inch.
3. The base shall be cut from a single ply of the material specified.
AMSC N/A
Page 1 of 2
FSC 8455
