INCH-POUND
MIL-DTL-3476/23D
5 May 2014
SUPERSEDING
MIL-DTL-3476/23C
20 August 1997
DETAIL SPECIFICATION SHEET
BRASSARD, PHOTOGRAPHER, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-3476.
MATERIAL:
BASE: Facing Cloth
LETTERING: Felt
COLOR:
BASE: Ultramarine Blue (Cable 65010)
LETTERING: Silver Gray (Cable 65008)
CONSTRUCTION DETAILS:

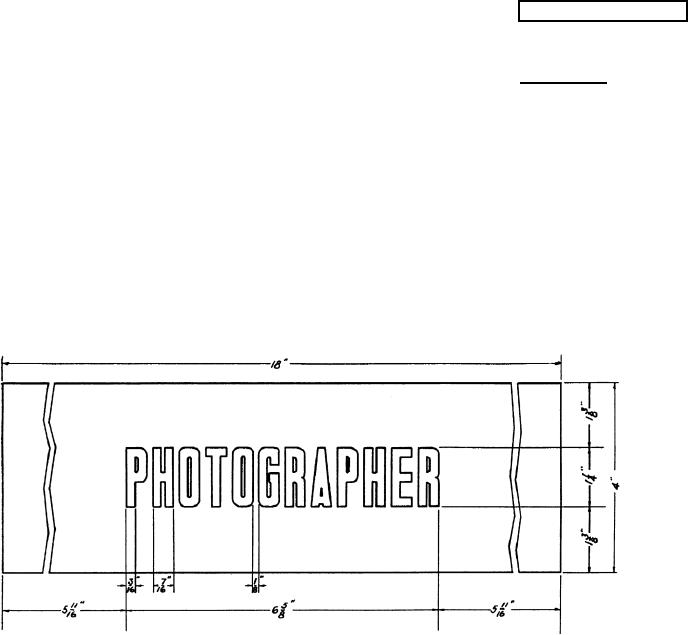

1 Lettering shall be appliquéd to the base in the position shown using Stitch Type 301 with 16
stitches to the inch. Lettering shall be located in the position shown.
2. The thread for hemming and appliquéing shall conform to Type IC2, 3 Ply, Ticket No. A of A-A-
52094
3. The color of the thread for hemming shall conform to Ultramarine Blue Cable No. HS 67118.
The color of the thread for appliquéing shall conform to Silver Gray Cable No. HAM 67137
AMSC N/A
Page 1 of 2
FSC 8455
