INCH-POUND
MIL-DTL-3476/17D
21 April 2014
SUPERSEDING
MIL-DTL-3476/17C
20 August 1997
DETAIL SPECIFICATION SHEET
BRASSARD, MOVEMENT CONTROL, U.S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-3476.
MATERIAL:
BASE: Facing Cloth
LETTERING: Felt
COLOR:
BASE: Brick Red (Cable 65020)
LETTERING: Golden Yellow (Cable 65001)
CONSTRUCTION DETAILS:

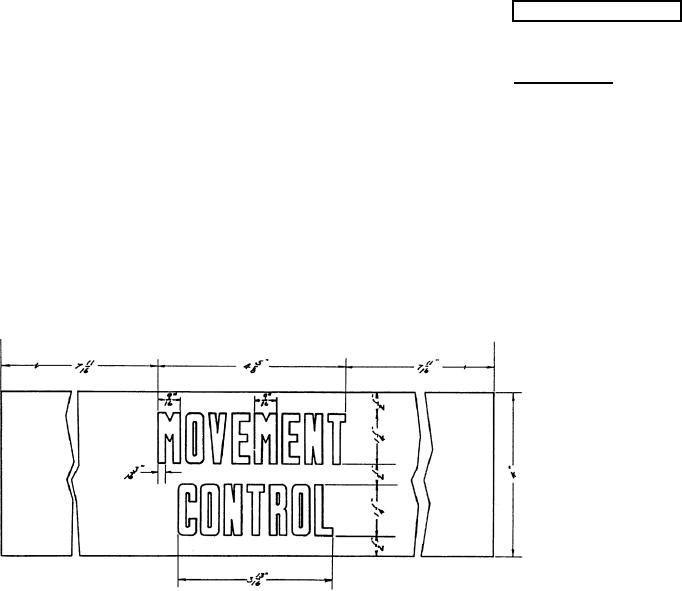

1. Lettering shall be appliquéd to the base in the position shown using Stitch Type 301 with 16
stitches to the inch. Lettering shall be located in the position shown (See The Institute of Heraldry
Drawing Number B-8-28).
2. The thread for hemming and appliquéing shall conform to Type IC2, 3 Ply, Ticket No. A of A-A-
52094
3. The color of the thread for hemming shall conform to Brick Red Cable No. HN 67113. The
color of the thread for appliquéing shall conform to Golden Yellow Cable No. HD 67104
AMSC N/A
Page 1 of 2
FSC 8455
