INCH-POUND
MIL-DTL-3476/1D
5 May 2014
SUPERSEDING
MIL-DTL-3476/1C
20 August 1997
DETAIL SPECIFICATION SHEET
BRASSARD, AIRDROME OFFICER, U.S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-3476.
MATERIAL:
BASE: Wool Broad Cloth
LETTERING: Wool Felt
COLOR:
BASE: Ultramarine Blue (Cable No. 65010)
LETTERING: Silver Gray (Cable No. 65008)
CONSTRUCTION DETAILS:

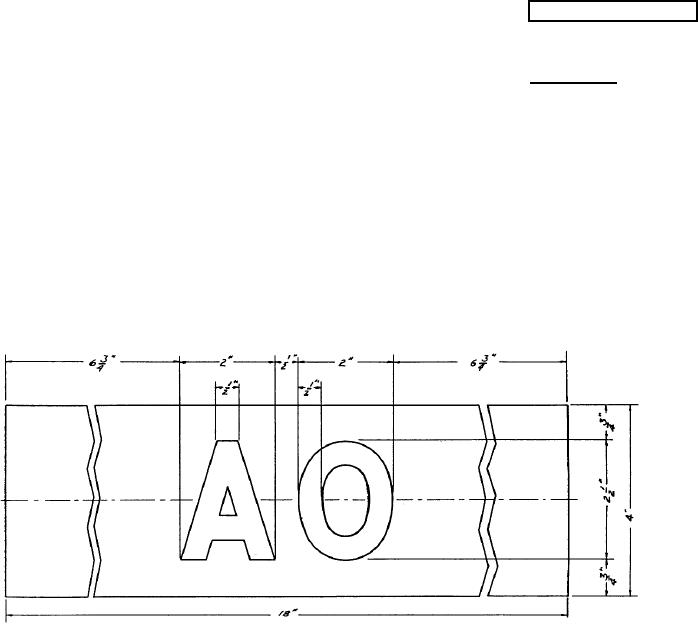

1. Lettering shall be appliquéd to the base in the position shown with silver gray cotton thread
conforming to Cable Number Silver Gray HAM 67137 using stitch type 301 with 16 stitches to the
inch (See The Institute of Heraldry Drawing Number B-8-8).
2. The brassard shall have a 3/8 inch hem on all sides. Hemming shall be accomplished with
cotton thread conforming to Cable No. Ultramarine Blue HS 67118 using stitch type EFa-1 of
ASTM-D-6193 with 12 stitches to the inch.
3. The thread for appliquéing and hemming shall conform to type IC2, 3 ply, ticket No. A of A-A-
52094
AMSC N/A
Page 1 of 2
FSC 8455
