INCH-POUND
MIL-DTL-15665/2M
20 November 2007
SUPERSEDING
MIL-DTL-15665/2L
7 September 2006
DETAIL SPECIFICATION SHEET
INSIGNIA, COLLAR, EP; "U.S.", AIR FORCE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-15665.
MATERIAL: Red Brass
FINISH: Nickel Plated, Mirror-like Polished and shall match The Institute of Heraldry
(TIOH) Metal Finish Chip Number 16.
DIMENSIONS:
DIAMETER (overall) 1 Inch (REF)
THICKNESS (outside edge of rim): 0.055 inch + 0.005 inch
NOTES:
1. The term (REF) refers to measurements taken from the Government furnished hub or
die.

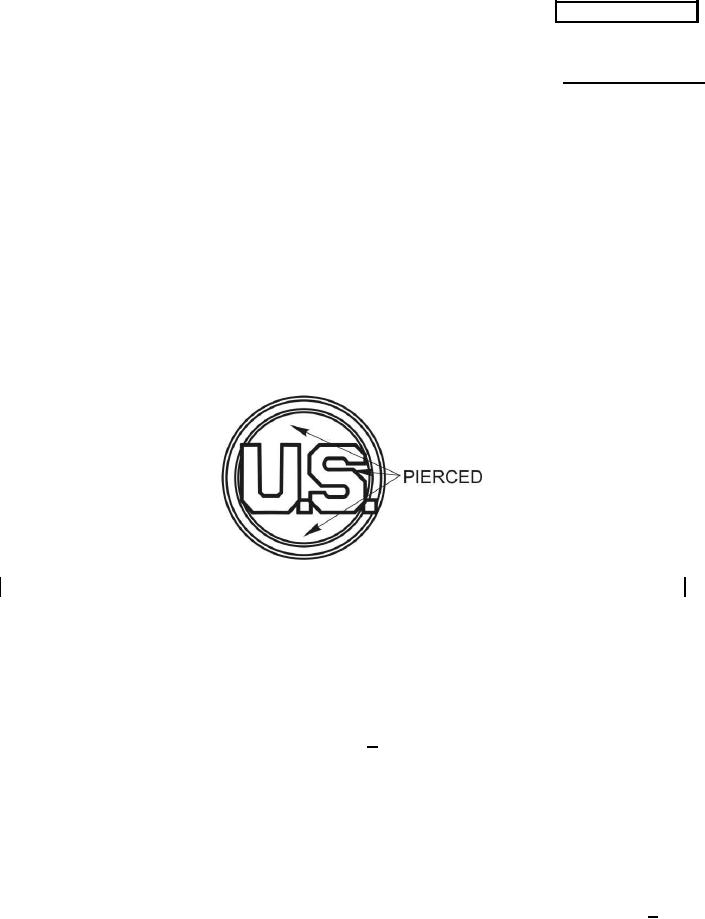

2. Pierced areas shall be as indicated.
3. The reverse of the insignia shall be spherically dapped to a radius of 1-5/8 inches +
1/8 inch.
