MIL-DTL-15665/116
13 January 2015
DETAIL SPECIFICATION SHEET

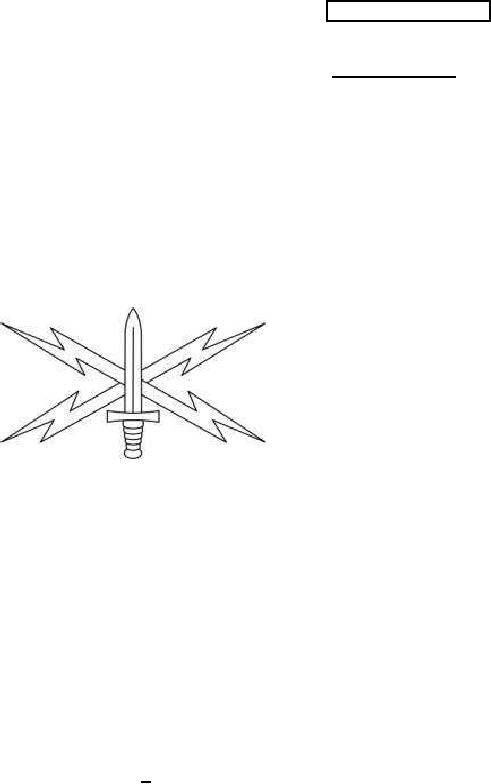

INSIGNIA, BRANCH OF SERVICE, OFFICER, CYBER WARFARE, U. S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-15665.
MATERIAL: Red Brass 85/15/ (UNS Alloy No. C-230)
FINISH: Nickel Plated, 22K Gold Plated, Mirror-like Polished, and shall match The Institute
of Heraldry (TIOH) Metal Finish Chip No. 9.
DIMENSIONS:
HEIGHT: 15/16 inch (REF)
WIDTH: 1- 5/16 inches (REF)
THICKNESS: 0.078 inch ± 0.010 inch
ATTACHING DEVICE:
1. Attaching device will be prong and wing-grip clutch type with two prongs.
2. The prongs will be placed on the upper right hand bolt and the lower left hand bolt. Each
prong shall have an overall length of 5/16 + 1/8 inch and fused or soldered to the insignia.
NOTES:
1. The term (REF) refers to measurements taken from the Government furnished hub or
die.
2. At the manufacturer s discretion, and for commercial sale only, Insignia may be finished as
follows: 24K Gold Plated, Mirror-like Polished, and shall match TIOH Metal Finish Chip
Number
