INCH-POUND
MIL-DTL-15665/115
13 January 2015
DETAIL SPECIFICATION SHEET
INSIGNIA, BRANCH OF SERVICE, ENLISTED, CYBER WARFARE, U. S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-15665.

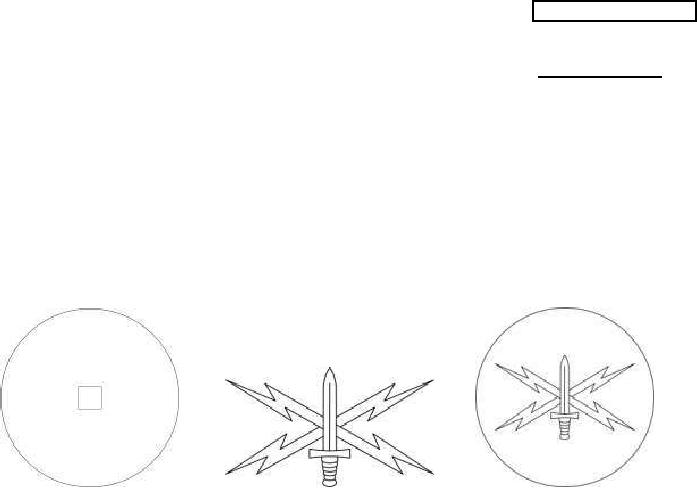

DISC
DEVICE
ASSEMBLED
MATERIAL: Red Brass 85/15/ (UNS Alloy No. C-230)
FINISH:
DISC: Nickel Plated, 22K Gold Plated, Mirror-like Polished, and shall match The Institute
of Heraldry (TIOH) Metal Finish Chip No. 9.
DEVICE: Nickel Plated, 22K Gold Plated, Mirror-like Polished, and shall match TIOH
Metal Finish Chip No. 9.
DIMENSIONS:
DISC:
DIAMETER: 1 inch
THICKNESS: DISC: 0.040 inch ± 0.010 inch
DEVICE:
HEIGHT: 11/16 inch (REF)
WIDTH: 7/8 inch (REF)
THICKNESS: 0.062 inch ± 0.010 inch
ASSEMBLED: 0.125 inch ± 0.010 inch
ATTACHING DEVICE: A type B screw post, a type C disc, and a type B plate, all in
accordance with TIOH drawing 4-4-89 shall be used.
AMSC N/A
Page 1 of 2
FSC 8455
