INCH-POUND
MIL-DTL-1563/9B
6 January 2014
SUPERSEDING
MIL-DTL-1563/9A
18 April 1997
DETAIL SPECIFICATION SHEET

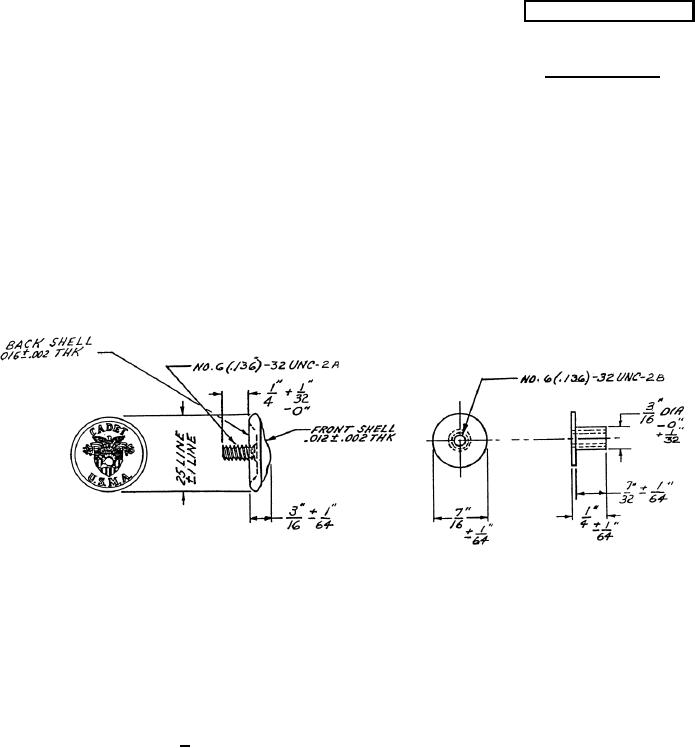

INSIGNIA, U.S.M.A., BUTTON, BALL, 25 LIGNE WITH TUBE SCREW
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-B-1563.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH: Gold Plated, Matte Finish, Rims Lathe, Beveled and Burnished, Polished
Highlights.
TEST FOR GOLD PLATING: Quantitative (Average Grains of gold per dozen button)
Minimum 1 Grain.
DIMENSIONS: 25 Ligne + 1 Ligne. (REF)
MARKING FOR IDENTIFICATION: Back Shell
SUGGESTED PACKIGING: Standard Commercial
UNIT PACKAGING: 24 buttons shall be mounted on a 3 X 4 inch card and wrapped.
INTERMEDIATE PACKAGING: 144 per box.
