INCH-POUND
MIL-DTL-1563/10B
6 January 2014
SUPERSEDING
MIL-DTL-1563/10A
30 April 1997
DETAIL SPECIFICATION SHEET
INSIGNIA, U.S.M.A., BUTTON, 30 LIGNE, FLAT WITH TOGGLE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-B-1563.

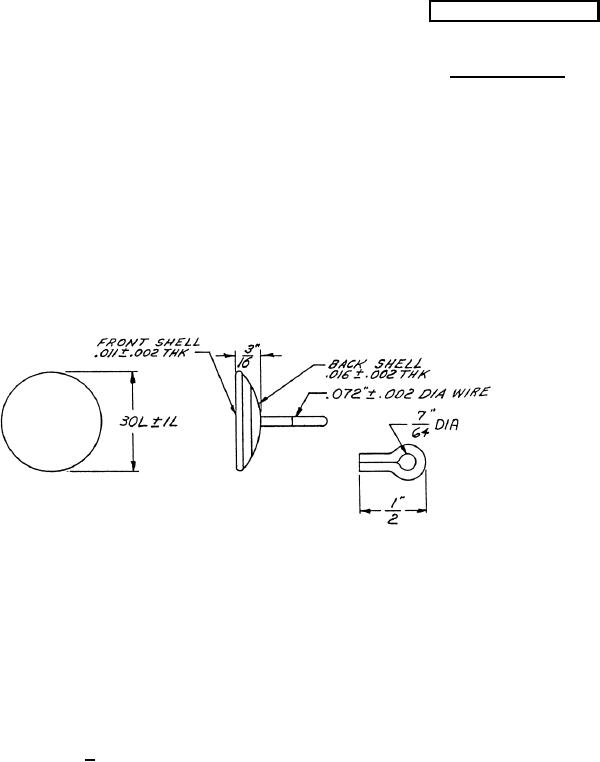

MATERIAL:
FRONT SHELL: Red Brass 85/15 (UNS Alloy No. C-230)
BACK SHELL: Low Brass 80/20 (UNS Alloy No. C-240) or Red Brass 85/15
(UNS Alloy No.C-230)
FINISH: Nickel Plated, Gold Plated, Mirror-like Polished (Outer Shell only).
TEST FOR GOLD PLATING: Quantitative (Average Grains of gold per dozen buttons)
Minimum 1.75 Grains.
DIMENSIONS: 30 Ligne + 1 Ligne. (REF)
MARKING FOR IDENTIFICATION: Back Shell
SUGGESTED PACKIGING: Standard Commercial
UNIT PACKAGING: 24 buttons securely wrapped, 144 per box tightly packed to avoid
movement.
AMSC N/A
Page 1 of 2
FSC 8455
