NOT MEASUREMENT SENSITIVE
MIL-DTL-11484/52F
27 September 1996
SUPERSEDING
MIL-L-11484/52E
14 January 1994
DETAIL SPECIFICATION SHEET

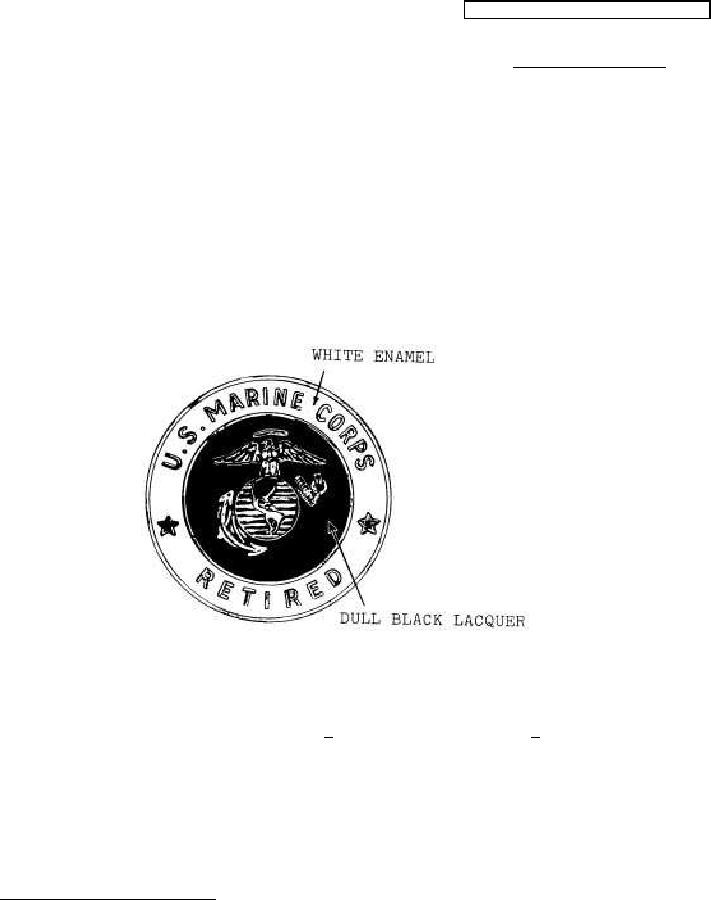

LAPEL BUTTON, RETIRED PERSONNEL, MARINE CORPS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-11484 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
DASH NO.
MATERIAL:
Gilding Metal
-1:
Under 30 Years Service (Gold)
-2:
30 Years Service or Over (Silver)
DIMENSIONS:
DIAMETER: 19/32 inch (1.51 cm) (REF)
THICKNESS (At Edge): 0.048 inch + 0.005 inch (0.122 cm + 0.012 cm)
FINISH:
-1:
Hard Enameled, Gold Plated, Matte Finish, Polished Highlights,
Dull Black Lacquer and shall match TIOH Metal Finish Chip
Number 8.
-2:
Hard Enameled, Nickel Plated, Mirror-like Polished, Dull Black
Lacquer and shall match TIOH Metal Finish Chip Number 16.
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
