NOT MEASUREMENT SENSITIVE
MIL-DTL-11484/36D
27 September 1996
SUPERSEDING
MIL-L-11484/36C
14 January 1994
DETAIL SPECIFICATION SHEET

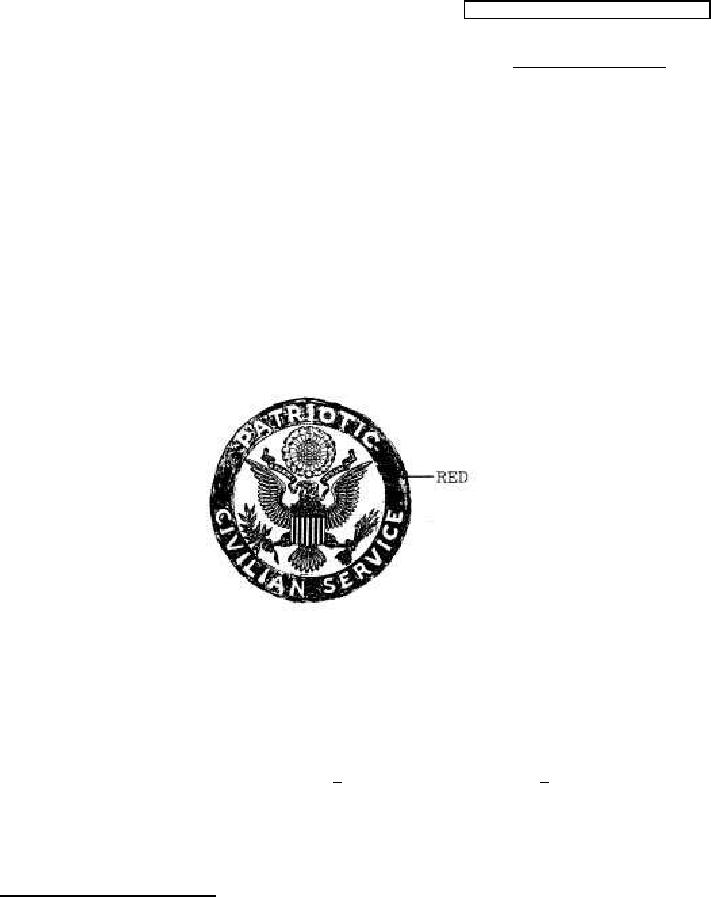

LAPEL BUTTON, PATRIOTIC CIVILIAN SERVICE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-11484 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
MATERIAL:
Gilding Metal
FINISH:
Hard Enameled, Gold Plated, Matte Finish, Polished Highlights and
shall match TIOH Metal Finish Chip Number 8.
DIMENSIONS:
DIAMETER: 19/32 inch (1.51 cm) (REF)
THICKNESS (At Edge): 0.060 inch + 0.005 inch (0.152 cm + 0.012 cm)
NOTES:
1. The term (REF) refers to the measurements taken from the
Government furnished hub or die.
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
