INCH-POUND
MIL-DTL-11484/27E
29 August 2008
SUPERSEDING
MIL-DTL-11484/27D
27 September 1996
DETAIL SPECIFICATION SHEET

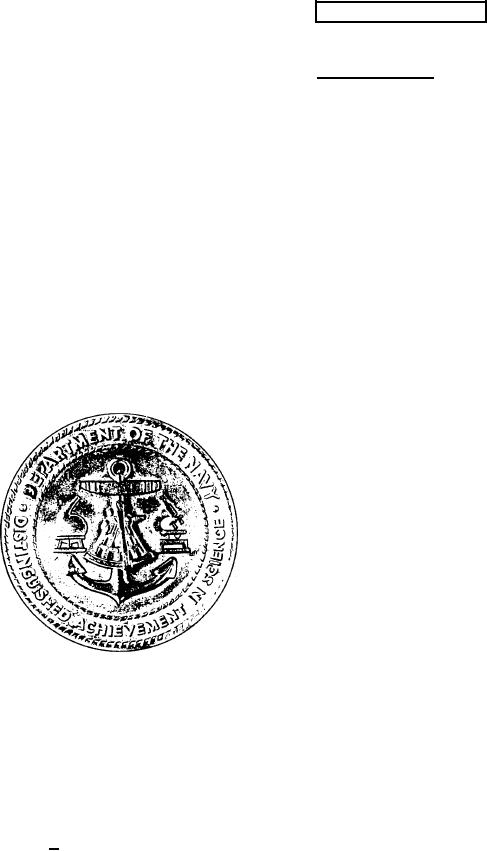

LAPEL BUTTON, AWARD FOR DISTINGUISHED ACHIEVEMENT IN SCIENCE, NAVY
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Red Brass
FINISH: Gold Plated, Rose Gold Plated, Matte Finish, Highlights Relieved.
DIMENSIONS:
DIAMETER: 11/16 inch (REF)
THICKNESS (at edge): 0.055 inch + 0.005 inch
NOTES:
1. The term (REF) refers to the measurements taken from the Government furnished
hub or die.
AMSC N/A
Page 1 of 2
FSC 8455
