INCH-POUND
MIL-DTL-11484/24E
29 August 2008
SUPERSEDING
MIL-DTL-11484/24D
27 September 1996
DETAIL SPECIFICATION SHEET

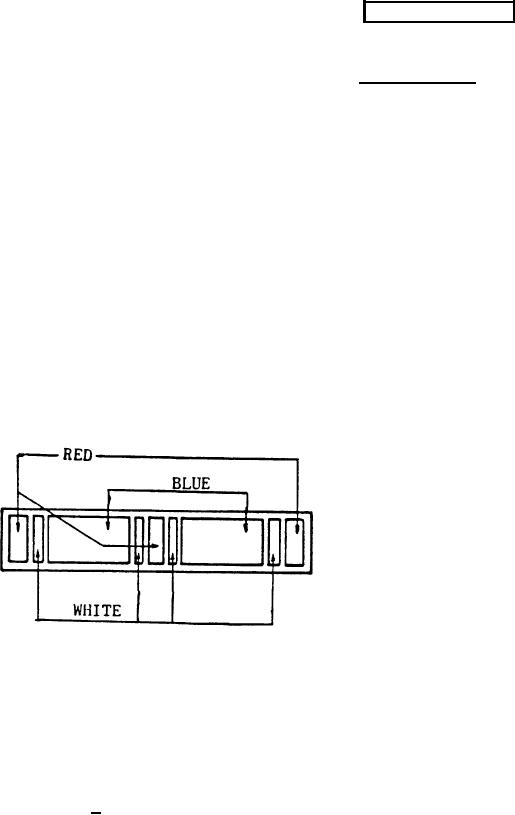

LAPEL BUTTON, OUTSTANDING UNIT AWARD, AIR FORCE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Gilding Medal
DIMENSIONS:
HEIGHT (overall): 9/64 inch (REF)
WIDTH (overall): 21/32 inch (REF)
THICKNESS (at edge): 0.065 inch + 0.005 inch
FINISH:
Hard Enameled, Gold Plated, Mirror-like Polished and shall match The Institute of Heraldry
(TIOH) Metal Finish Chip Number 6.
AMSC N/A
Page 1 of 2
FSC 8455
